Name: Alpine RUX-C810 High-Resolution Remote Control Unit for Alpine DSP Amplifiers with Rotary Volume Knob & Preset Switching - Ayon Motors
Price: 13999.00 BDT
Availability: InStock

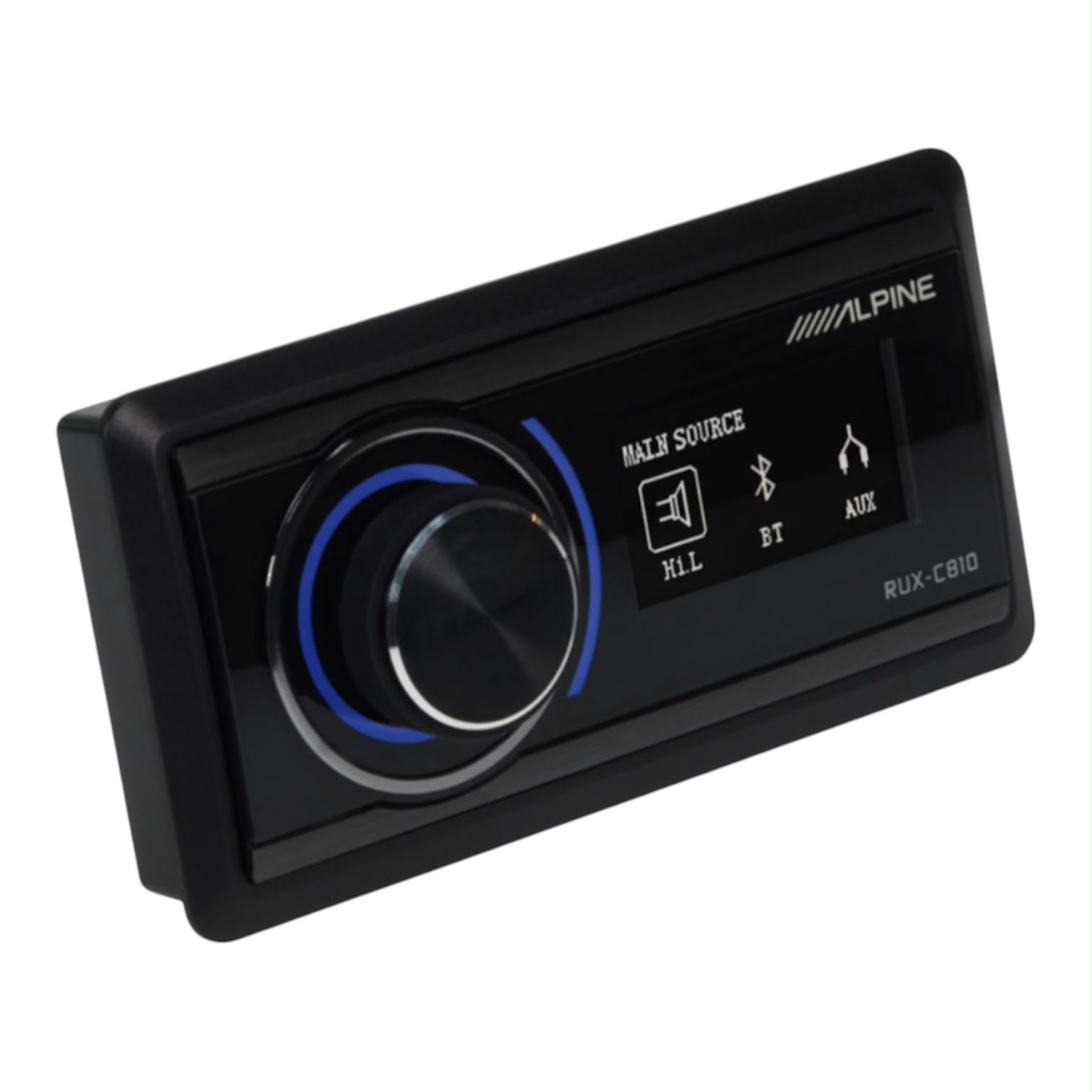

Alpine RUX-C810 High-Resolution Remote Control Unit for Alpine DSP Amplifiers with Rotary Volume Knob & Preset Switching

13,999.00৳

Master Your Sound System Effortlessly from the Driver’s Seat!🎛️

Take full command of your vehicle’s digital signal processor with the Alpine RUX-C810 DSP Remote Controller Multi Media Receiver! Designed for seamless dashboard mounting, this compact controller features a blue-illuminated rotary dial, a high-contrast black-and-white LCD screen, and instant source switching for Bluetooth, AUX, High-Level, and USB inputs.

Get original Alpine DSP gear with professional dashboard installation at Ayon Motors! 🛒

Description

KEY HIGHLIGHTS

Hi-Res Audio Master Controller: Designed to control standalone Alpine DSP processors, providing quick access to volume, presets, and audio inputs.
Blue-Illuminated Rotary Dial & LCD Display: Features a precise encoder knob wrapped in blue LED lighting alongside a clear white-on-black screen.
Multiple Source Switching: Allows instant toggling between High-Level Input, Bluetooth, AUX, and USB audio sources.
Ultra-Compact Mounting Profile: Slim enclosure ( $88\text{ mm} \times 43\text{ mm}$ ) allows versatile positioning on any vehicle dashboard.

TECHNICAL SPECIFICATION INDEX

Specification Category	Technical Details
Brand	Alpine (Emotion in Mobility)
Model	RUX-C810
Product Type	DSP Remote Controller / Multi Media Receiver
Audio Compatibility	Hi-Res Audio Support ( $192\text{ kHz} / 24\text{-bit}$ )
Display	High-Contrast LCD Screen (White Text on Black Background)
Controls	Rotary Encoder Knob with Blue LED Ring
Source Controls	High-Level (HLZ), Bluetooth (BT), AUX, USB
DSP Functions	Master Volume, Subwoofer Gain, Preset Selection, Source Selection
Dimensions (B x H x T)	$88\text{ mm} \times 43\text{ mm} \times 12\text{ mm}$
Weight	$67\text{ g}$
Included Cabling	$\approx 40\text{ cm}$ Main Cable + $5\text{ m}$ Extension Cable

DETAILED FEATURE BREAKDOWN & BENEFITS

Convenient Dashboard Sound Control

Features: Mountable remote controller unit with dedicated volume knob and LCD display.
Benefits: Adjusts sound levels, subwoofer output, and EQ presets directly without accessing PC software or mobile apps while driving.

Hi-Res Audio Processing Capability

Features: Supports high-resolution digital audio streaming up to $192\text{ kHz} / 24\text{-bit}$ .
Benefits: Preserves dynamic range and musical detail for a true studio-quality listening experience in your vehicle.

Versatile Source Input Selection

Features: Instant switching buttons for High-Level inputs, Bluetooth, AUX, and USB drives.
Benefits: Allows switching seamlessly between original factory head unit radio, smartphone Bluetooth streaming, or direct USB audio playback.

Sleek & Ergonomic Design

Features: Weighs just $67\text{ g}$ with a ultra-slim $12\text{ mm}$ thickness and blue accent LED illumination.
Benefits: Integrates smoothly into modern car interiors without cluttering the center console or blocking factory controls.

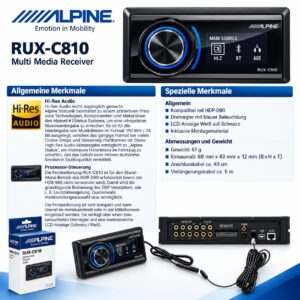

UNIT CONNECTION DIAGRAM

alpine rux c810 multi media receiver specifications diagram.jpg

Main Controller Interface: Connects directly to the Alpine DSP processor or media main unit via the supplied $5\text{ m}$ extension cable.
Audio Out / Aux In Ports: Routes pre-amp audio signals between external amplifiers and high-resolution input sources.
USB & RJ45 Communication Terminals: Secures digital signal communication and firmware updates between the controller and DSP system.
