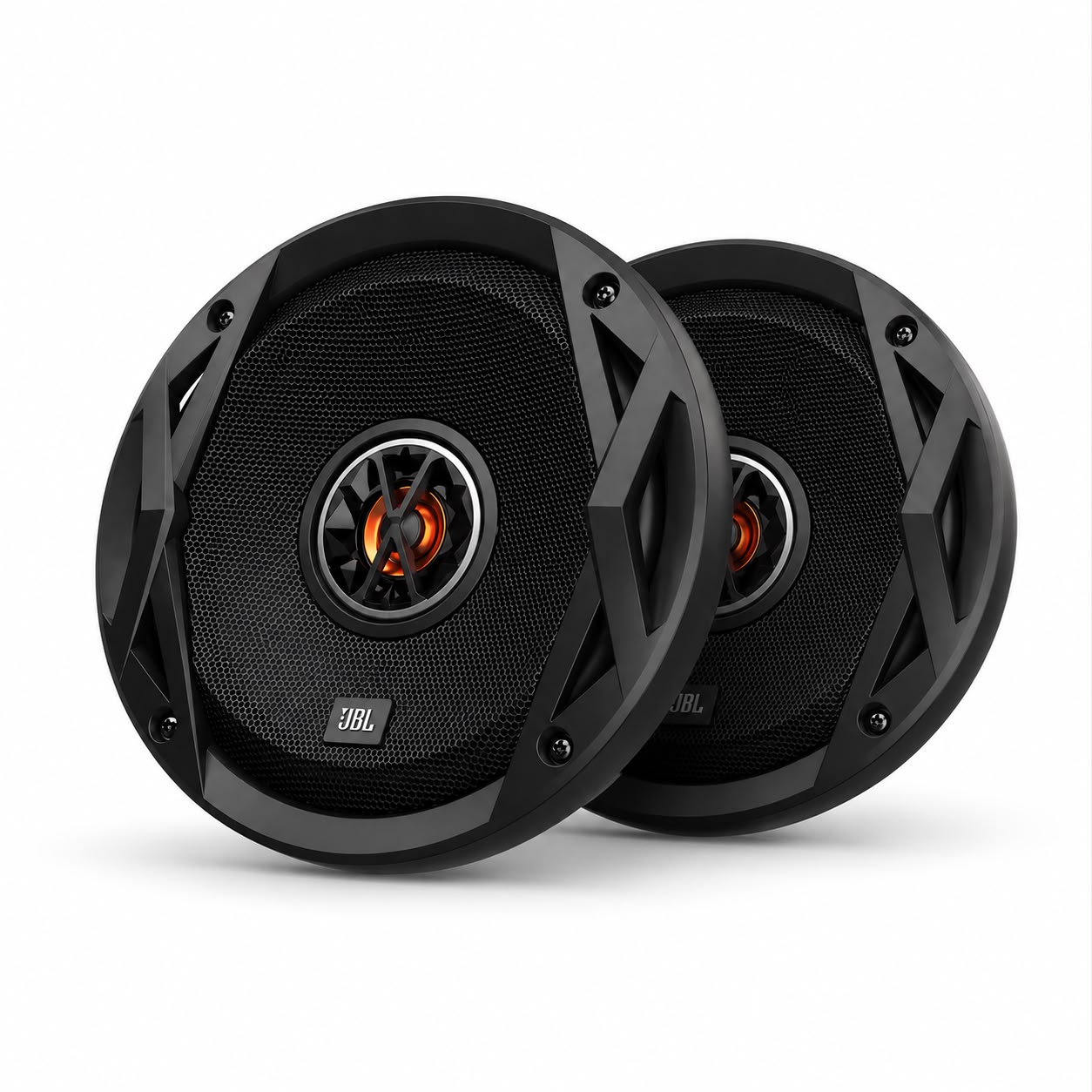

JBL Club 6520 6.5″ (160mm) Coaxial Car Speaker 50W RMS / 150W Peak / Harman Signature

The JBL Club 6520 is designed to replace dull, muffled factory car speakers with crisp, dynamic audio. Combining patented woofer geometry with high-efficiency 3-ohm voice coils, the Club 6520 allows your standard head unit to deliver fuller sound, clearer vocals, and punchier drum hits without requiring extra amplification.

1. Plus One™ Polypropylene Oversized Woofer Cones

Featuring HARMAN’s patented Plus One™ cone technology, the woofer cone extends closer to the frame edge. This creates up to 35% more active cone area compared to standard 6.5-inch speakers, delivering deeper mid-bass extension and warm vocal resonance from low door locations.

2. PEI Balanced Dome Tweeters

The center-mounted PEI balanced dome tweeter handles high-frequency reproduction with exceptional clarity. Its wide-dispersion design ensures treble notes, cymbals, and acoustic instruments spread evenly across the cabin rather than staying muffled near your feet.

3. High-Efficiency 3-Ohm Architecture

Factory stereo wiring often introduces electrical resistance that reduces speaker volume. The Club 6520’s low-impedance 3-ohm design compensates for wire resistance, allowing your stock deck or aftermarket head unit to deliver higher volume output effortlessly.

4. Compact High-Fitment Chassis

Designed with a universal basket rim and compact magnet profile, the Club 6520 drops cleanly into factory door speaker locations across a wide variety of vehicle makes and models.

PRODUCT SPECIFICATION INDEX

WHY COAXIAL SPEAKERS ARE RECOMMENDED FOR REAR DOORS

• Perfect Rear-Fill Soundstage Balance: Front-seat passengers benefit most from front component setups where separated tweeters pull the main vocal stage up to ear level. Installing coaxial speakers in the rear doors provides full-range “rear-fill” sound to round out the cabin atmosphere without pulling the main soundstage backward away from the driver.

• No Unnecessary Panel Modifications: Most vehicle rear doors lack factory tweeter cutouts or dedicated A-pillar pods. Coaxial speakers feature center-mounted tweeters directly over the woofer cone, delivering complete full-range audio without requiring custom holes or mounting pods in your rear door panels.

• Simplified Wiring & Clean Installation: Coaxial speakers integrate the tweeter and crossover network into the single driver chassis, eliminating the need to mount external crossover boxes inside rear door cavities where moisture and vibration can cause long-term wear.

• Ideal Complement to Front Component Systems: Pairing front component speakers (like the JBL Club 6500C or Club 602C) with rear coaxial speakers (like the JBL Club 6520) creates a balanced, matching sonic signature throughout the car using identical driver materials and voicings.

STEP-BY-STEP INSTALLATION GUIDE

1. Door Panel Disassembly: Carefully pop off door panel trim covers using a plastic trim tool, unscrew door card fasteners, disconnect power window controls, and remove the inner door panel.

2. OEM Speaker Removal: Unbolt or drill out rivets holding the original factory driver. Unclip the factory wire connector and clean the metal surface inside the door cavity.

3. Adapter Ring & Gasket Application: Mount a vehicle-specific 6.5-inch adapter bracket to the metal door sheet. Apply foam damping tape between the bracket and metal panel to prevent air leakage and rattling.

4. Wiring Integration: Connect a vehicle-specific harness adapter to the original factory speaker connector, ensuring correct polarity (+ to +, – to –) to maintain proper in-phase bass performance.

5. Speaker Mounting & Fastening: Secure the JBL Club 6520 into the mounting adapter using stainless steel mounting hardware. Ensure the speaker basket rests flat without binding.

6. Audio Testing & Panel Reassembly: Test left/right balance and volume level prior to replacing door cards. Once verified, re-attach the door panel and secure all trim hardware.
