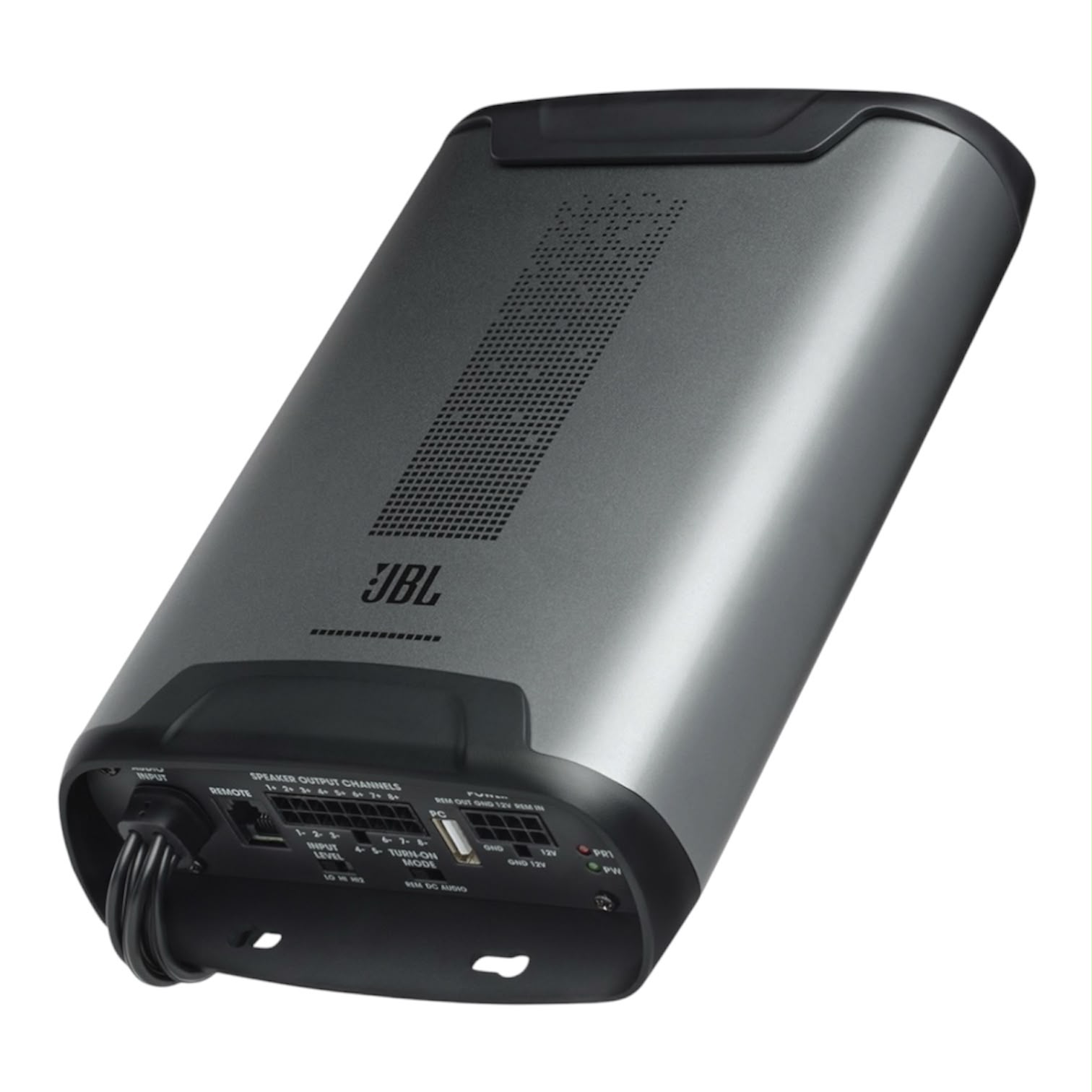

JBL DSPAMP6586 8-Channel Amplified DSP Processor PC Tuning Software, Bluetooth & Optical Inputs

Description

KEY HIGHLIGHTS

• Integrated Digital Signal Processor (DSP): Allows fine-tuning of every speaker channel independently for seamless acoustic alignment.

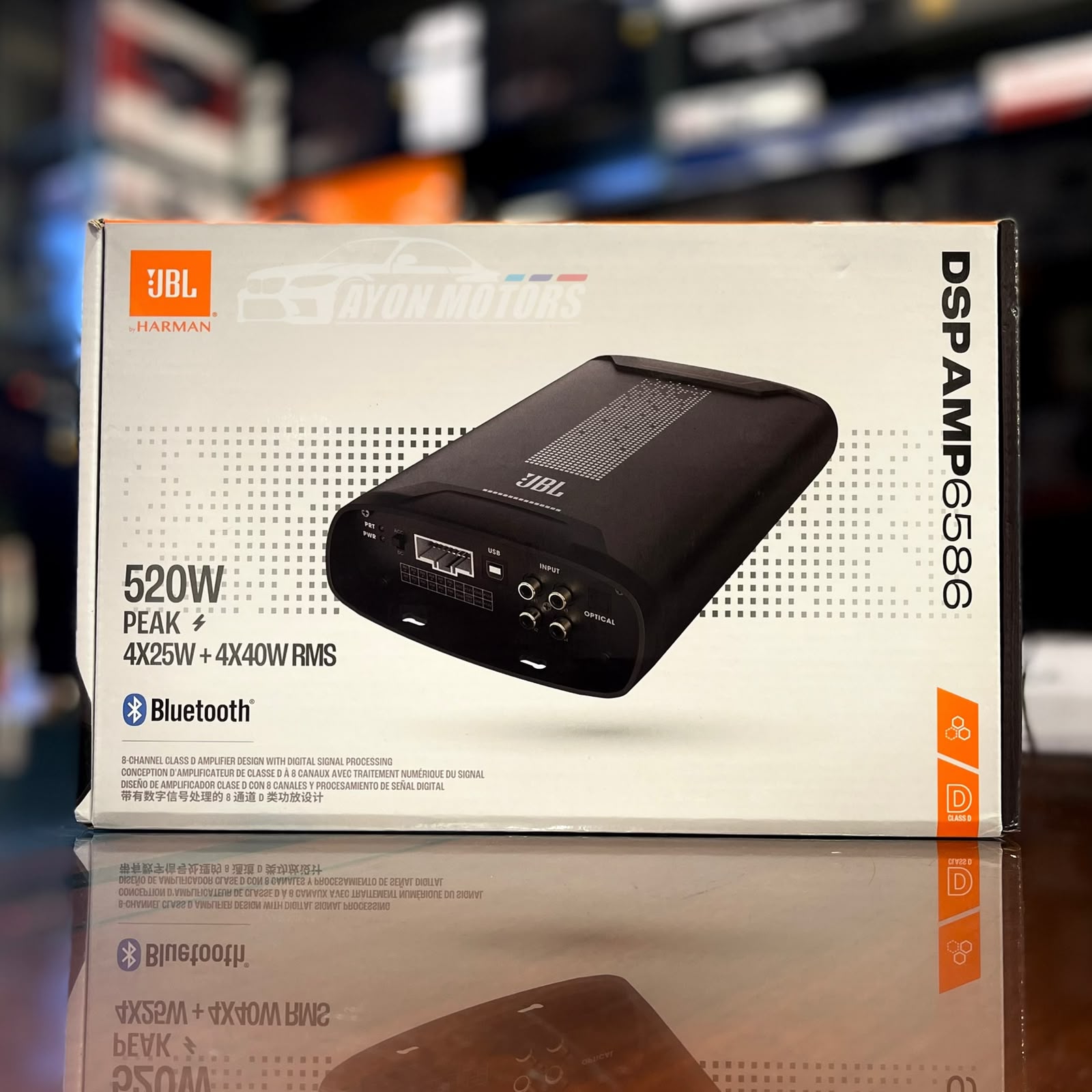

• High Output Class D Architecture: Delivers $520\text{W}$ Peak Power with an efficient $8 \times 40\text{W}$ RMS rating.

• Full-Featured Tuning Software: Detailed graphical interface for setting crossovers, gain structure, time delay, and equalization.

• Versatile Audio Signal Inputs: Includes high-level RCA pigtails, Optical input, and built-in Bluetooth streaming.

TECHNICAL SPECIFICATION INDEX

DETAILED FEATURE BREAKDOWN & BENEFITS

Precision Acoustic Tuning

• Features: Full PC software interface with 30-band parametric EQ and channel time-delay configuration.

• Benefits: Calibrates sound distribution so vocals and instruments align directly in front of the driver for a true soundstage experience.

High Power in a Small Enclosure

• Features: Class D circuit design producing reliable RMS power with minimal heat dissipation.

• Benefits: Takes up very little trunk or under-seat space while providing clean amplification for speakers and tweeters.

Universal Factory Head-Unit Compatibility

• Features: High-level speaker inputs with selectable turn-on modes (DC / REM / Audio).

• Benefits: Integrates smoothly into factory stock stereos without triggering error codes or requiring aftermarket head-units.

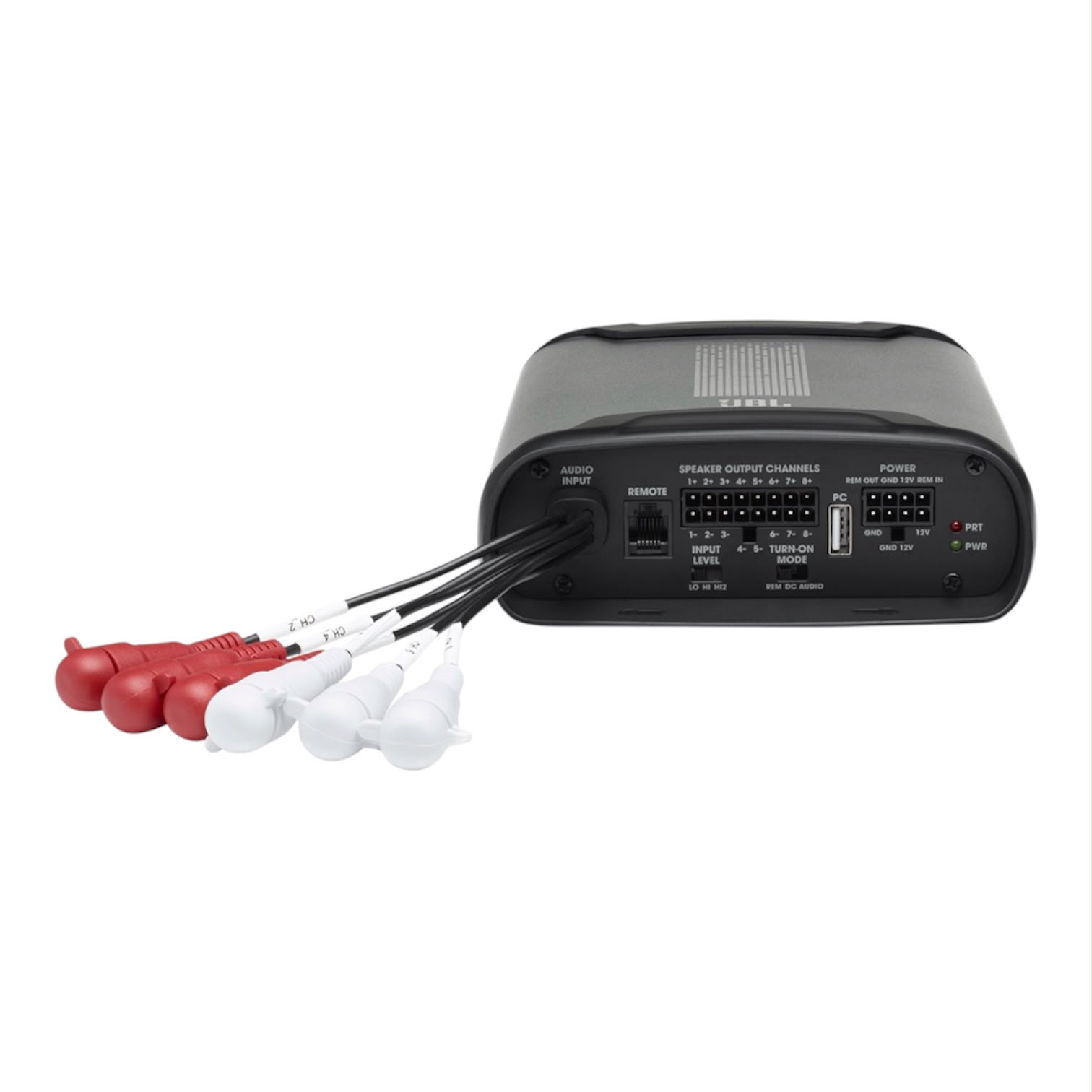

UNIT CONNECTION & INTERFACE DIAGRAM

• Audio Input Harness: Multi-pin RCA pigtail connector for high/low-level stereo inputs.

• Speaker Output Channels: Modular quick-connect block for wiring door speakers and tweeters.

• PC USB Port: Front-facing USB terminal for connecting laptop software during calibration.

• Power & Remote Terminals: Heavy-duty harness connections for $+12\text{V}$ power, Ground, and Remote turn-on lines.

WHY CHOOSE AYON MOTORS?

• 100% Guaranteed Authenticity: We supply genuine, original JBL by HARMAN car audio equipment directly from verified distributors with full manufacturer assurance.

• OEM-Grade Plug & Play Fitting: Our technicians install speakers and processors using vehicle-specific mounting rings and custom harness adapters—avoiding any cutting or altering of factory wiring.

• Pure Copper Cabling & Cloth Tape Braid: Systems are installed using 100% pure copper cables insulated with heat-resistant cloth tape and secured with routing clips for a completely noise-free and reliable setup.

• Professional DSP Tuning Services: We use real-time acoustic analyzers (RTA) and official PC software to program your DSP crossovers, time alignment, and EQ curves for maximum audio clarity in your vehicle.

• Premier Car Audio Destination: Trusted across Bangladesh for precision installations, custom sound builds, and uncompromising quality standards.
