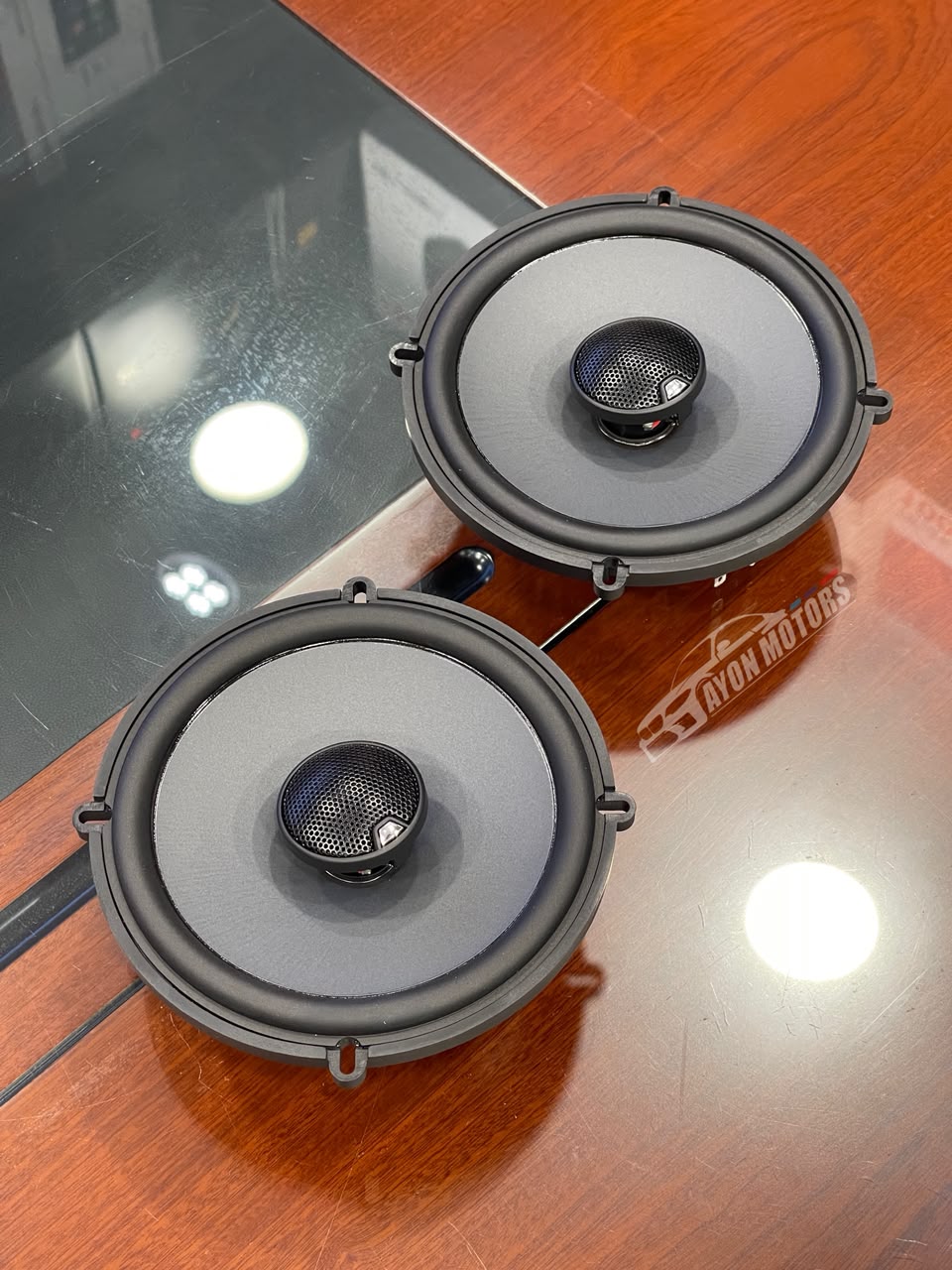

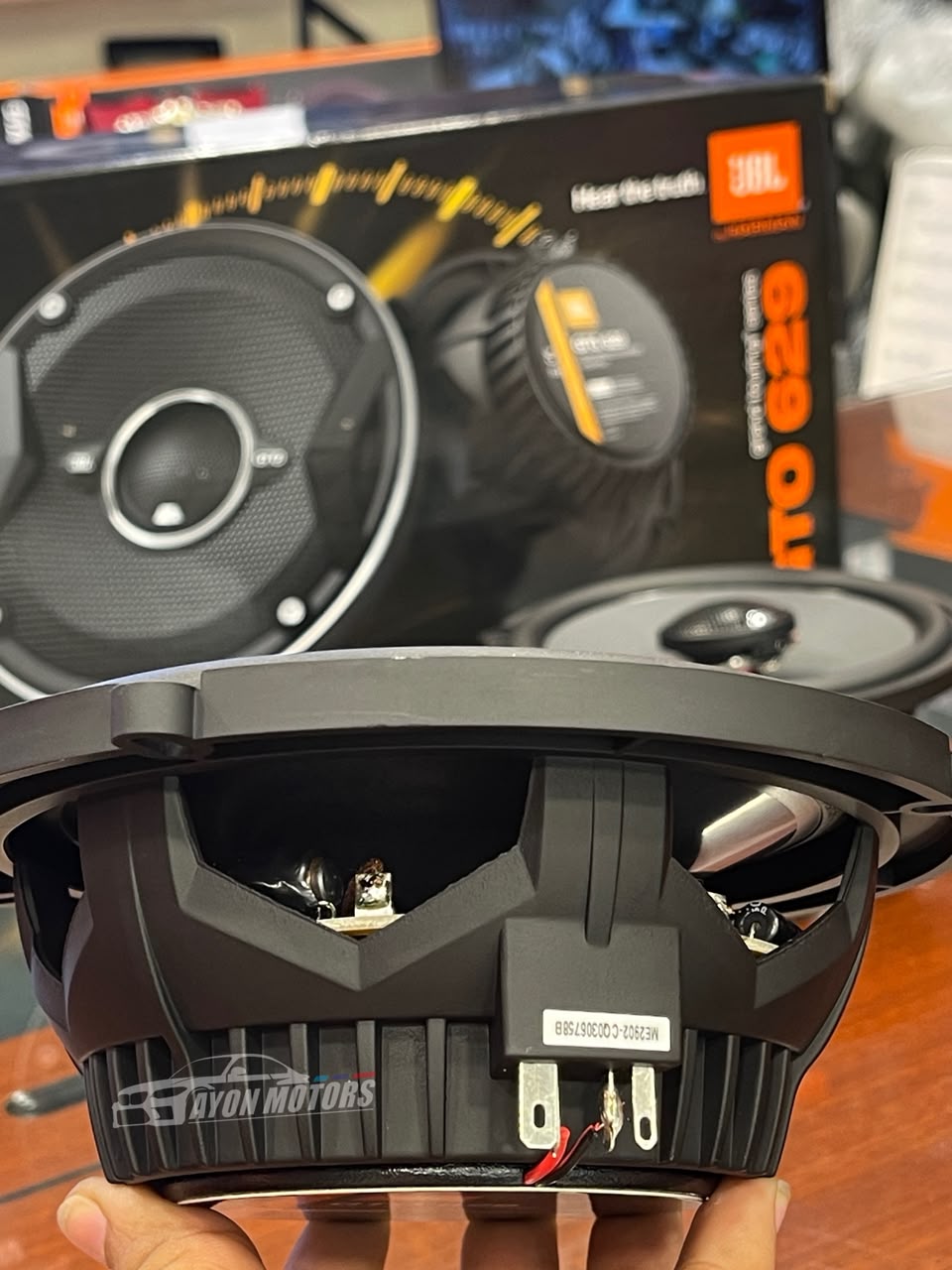

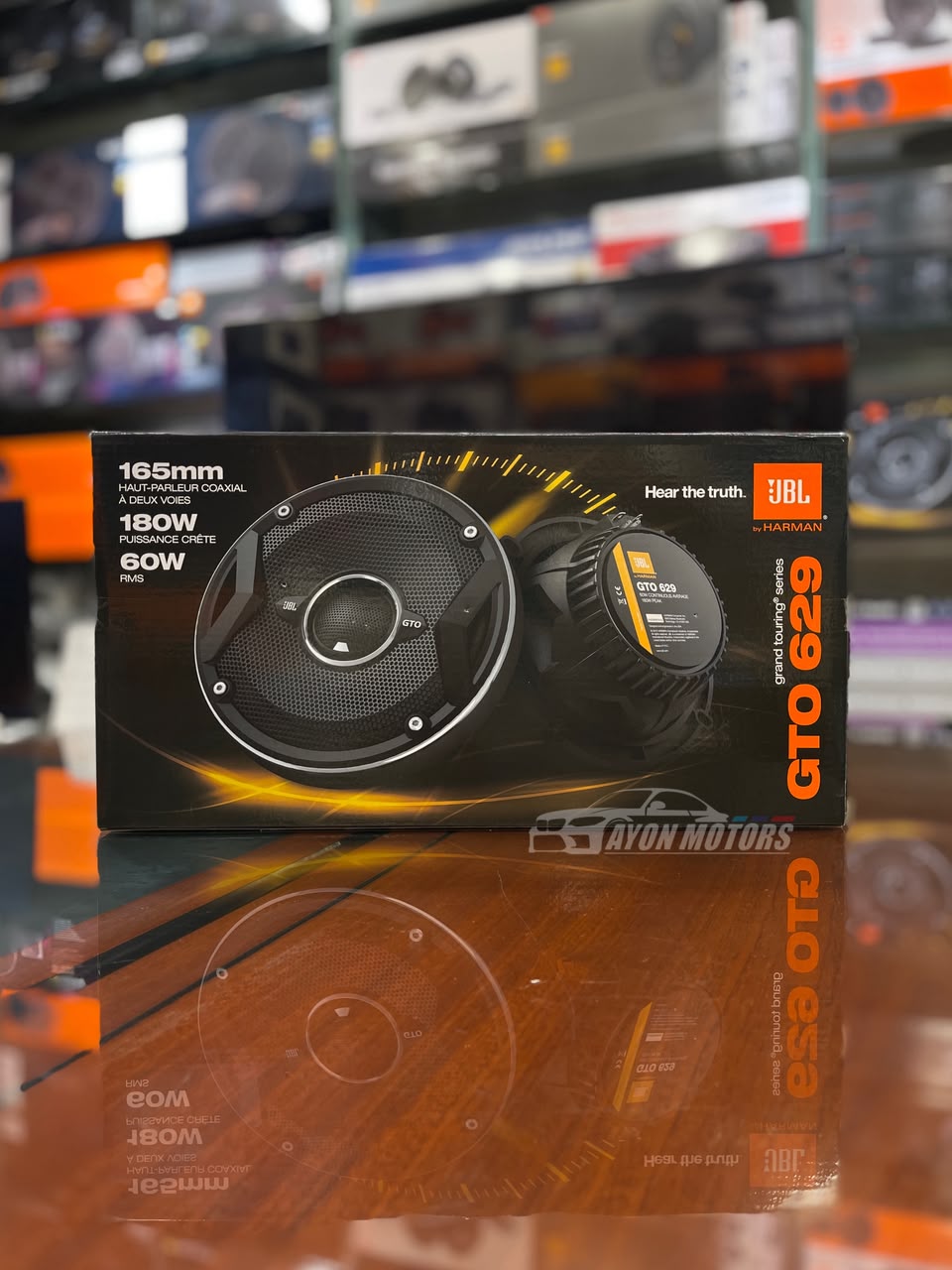

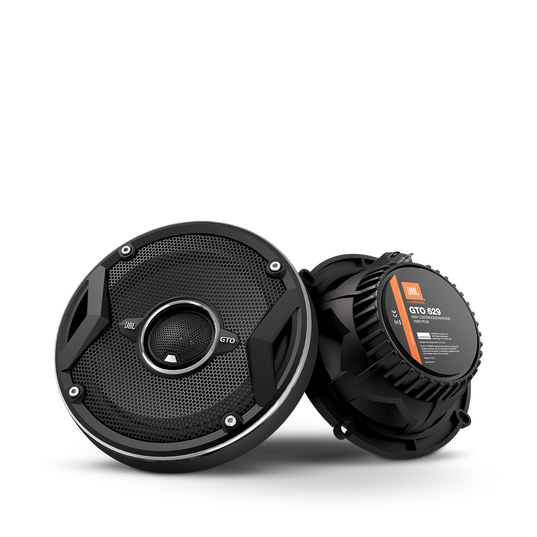

JBL GTO629 Grand Touring Series Car Audio Speaker – High-Performance Sound with 180W Peak Power

WHY COAXIAL SPEAKERS ARE RECOMMENDED FOR REAR DOORS

• Perfect Rear-Fill Soundstage Balance: Front-seat passengers benefit most from front component setups where separated tweeters pull the main vocal stage up to ear level. Installing coaxial speakers in the rear doors provides full-range “rear-fill” sound to round out the cabin atmosphere without pulling the main soundstage backward away from the driver.

• No Unnecessary Panel Modifications: Most vehicle rear doors lack factory tweeter cutouts or dedicated A-pillar pods. Coaxial speakers feature center-mounted tweeters directly over the woofer cone, delivering complete full-range audio without requiring custom holes or mounting pods in your rear door panels.

• Simplified Wiring & Clean Installation: Coaxial speakers integrate the tweeter and crossover network into the single driver chassis, eliminating the need to mount external crossover boxes inside rear door cavities where moisture and vibration can cause long-term wear.

• Ideal Complement to Front Component Systems: Pairing front component speakers with rear coaxial speakers (like the JBL GTO 629) creates a balanced, matching sonic signature throughout the car using identical driver materials and voicings.

STEP-BY-STEP INSTALLATION GUIDE

1. Door Panel Removal: Carefully remove door panel trim screws and unclip the plastic panel using a trim removal tool. Disconnect electrical harnesses for power windows/locks and set the door card aside safely.

2. Factory Speaker Removal: Unbolt or drill out the rivets holding the OEM speaker driver in place. Unplug the factory wire harness from the speaker basket.

3. Adapter Ring & Foam Installation: Mount a vehicle-specific 6.5″ adapter bracket to the metal door chassis using corrosion-resistant screws. Apply sound-dampening foam or butyl tape between the adapter ring and metal panel to prevent air leaks and rattling.

4. Wiring Integration: Connect a plug-and-play speaker harness adapter to the original factory plug, or solder terminal quick-connects directly to the leads. Ensure polarity is correct (+ to +, – to –) to maintain in-phase bass performance.

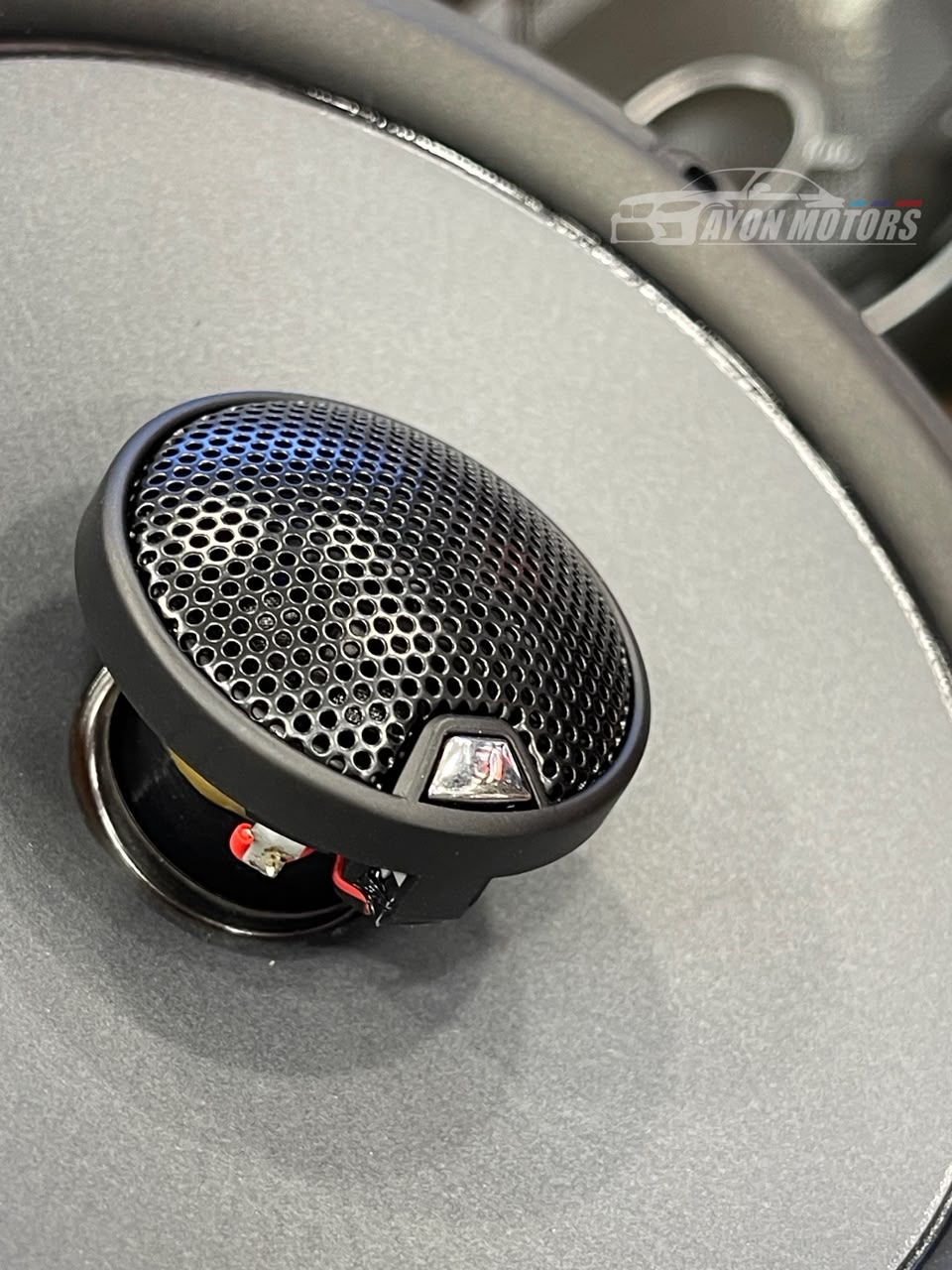

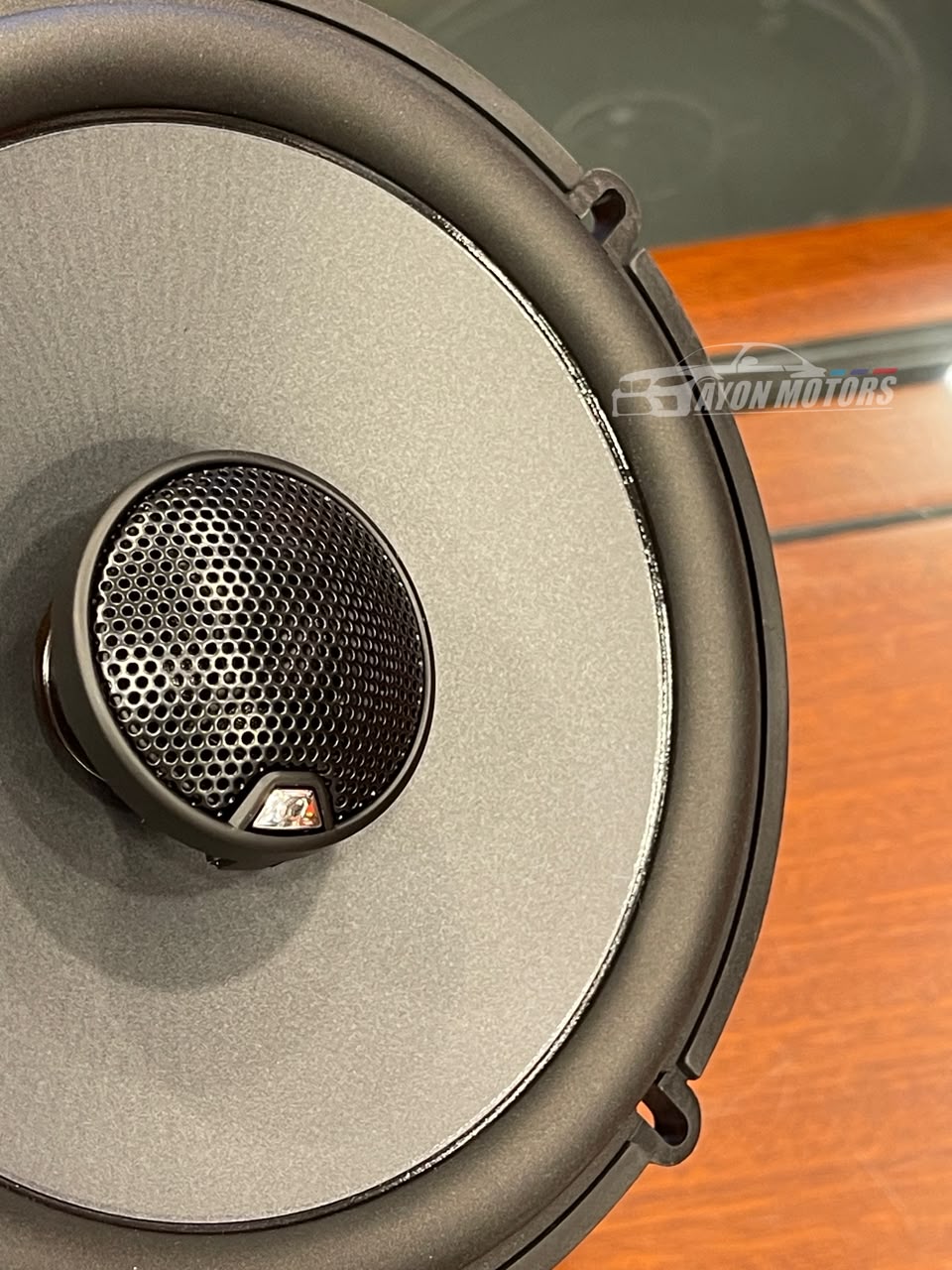

5. Mounting & Acoustic Aiming: Secure the JBL GTO 629 into the adapter ring using the provided stainless steel mounting hardware. Gently pivot the UniPivot™ tweeter upward toward the seating area, and set the 0dB/+3dB push-button depending on door panel mesh thickness.

6. Testing & Reassembly: Test audio balance and tone before reassembling the door. Once verified, clip the door panel back into position and secure all trim hardware.

WHY CHOOSE AYON MOTORS?

1. 100% Authentic HARMAN/JBL Stock: Genuine products verified with official serial numbers and original security packaging.

2. Professional OEM Installation: Clean mounting using proper vehicle adapter rings and heat-shrink connections.

3. Custom Cabin Audio Tuning: Equalizer and soundstage calibration tailored to your vehicle’s interior layout.
