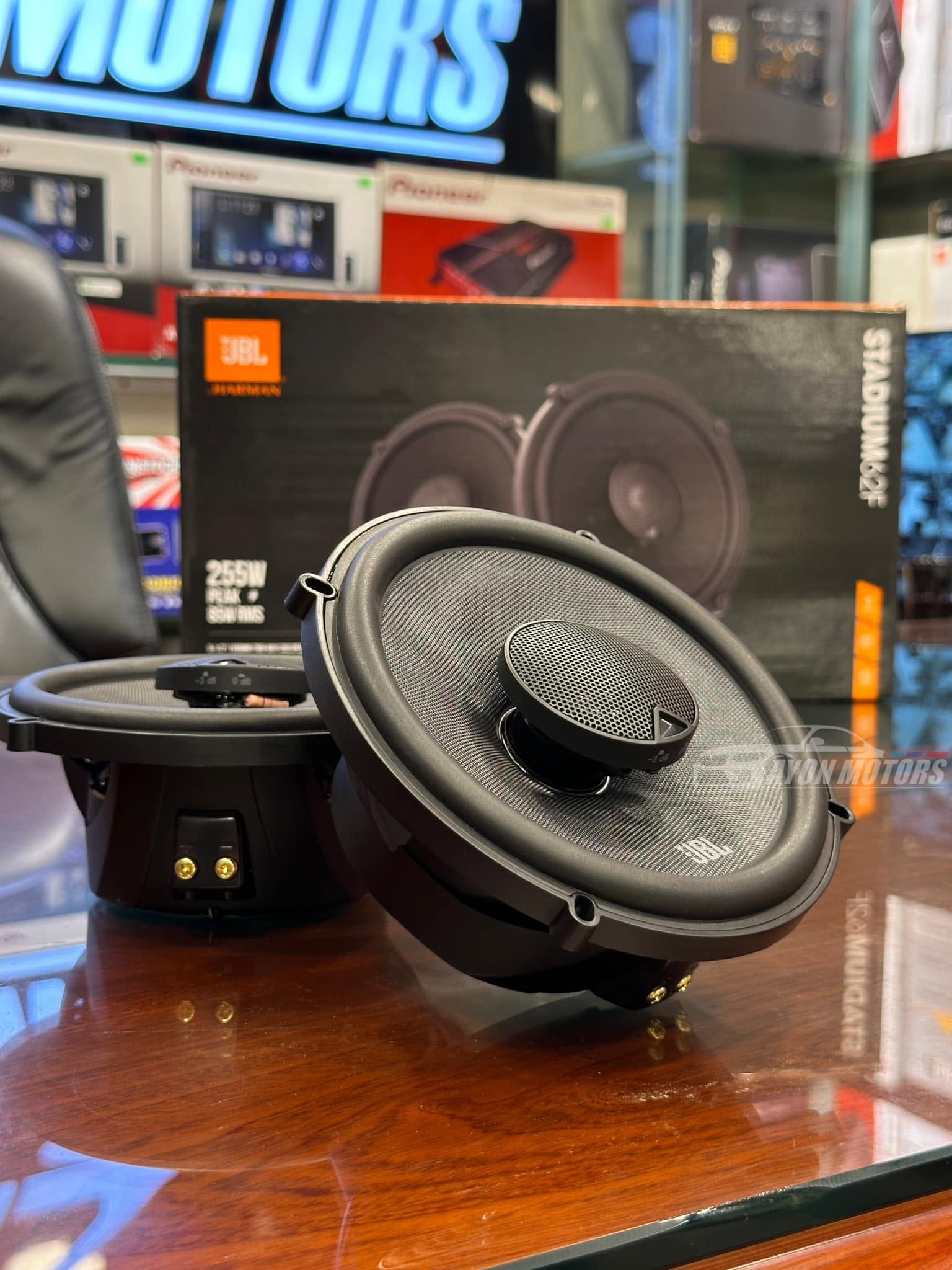

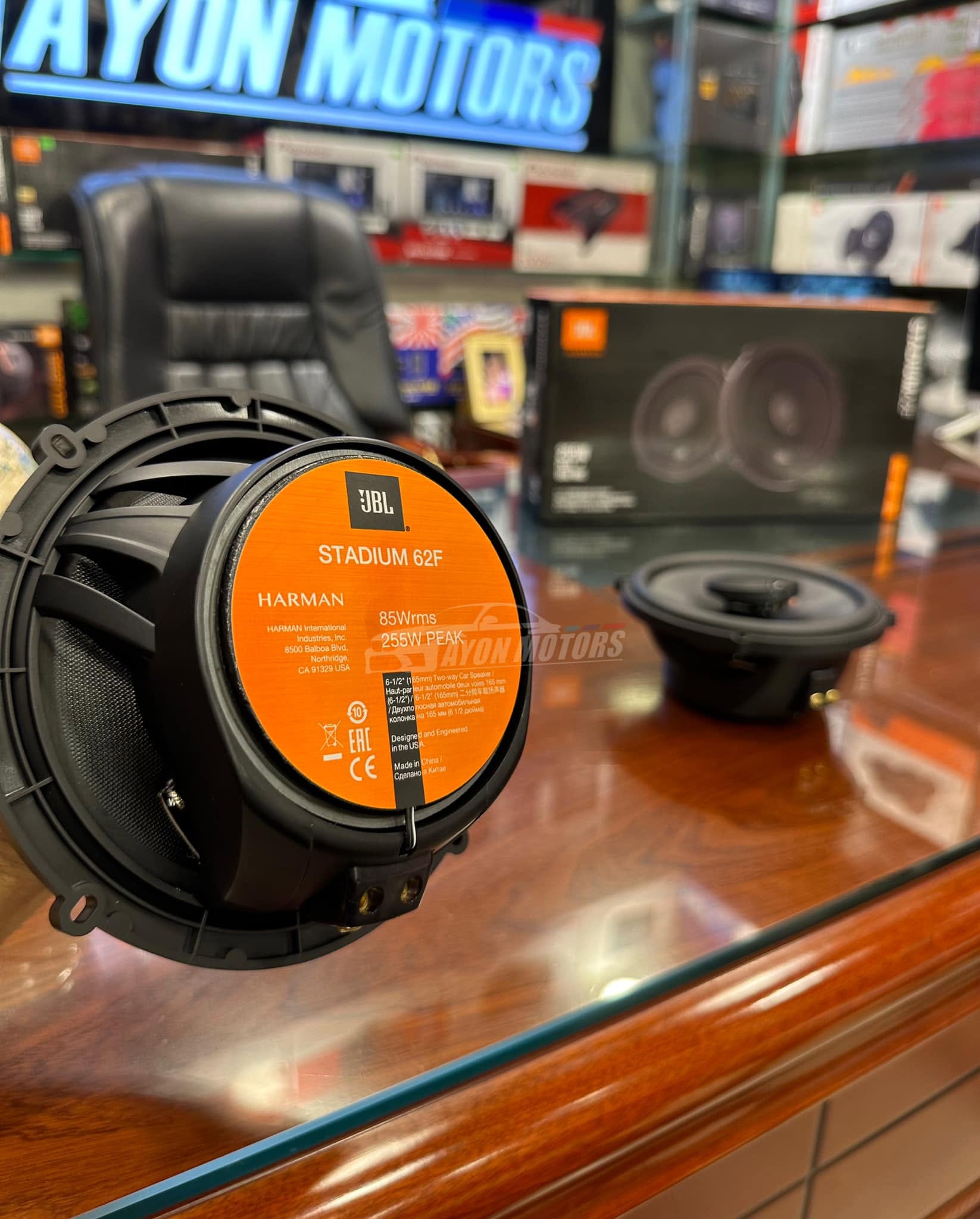

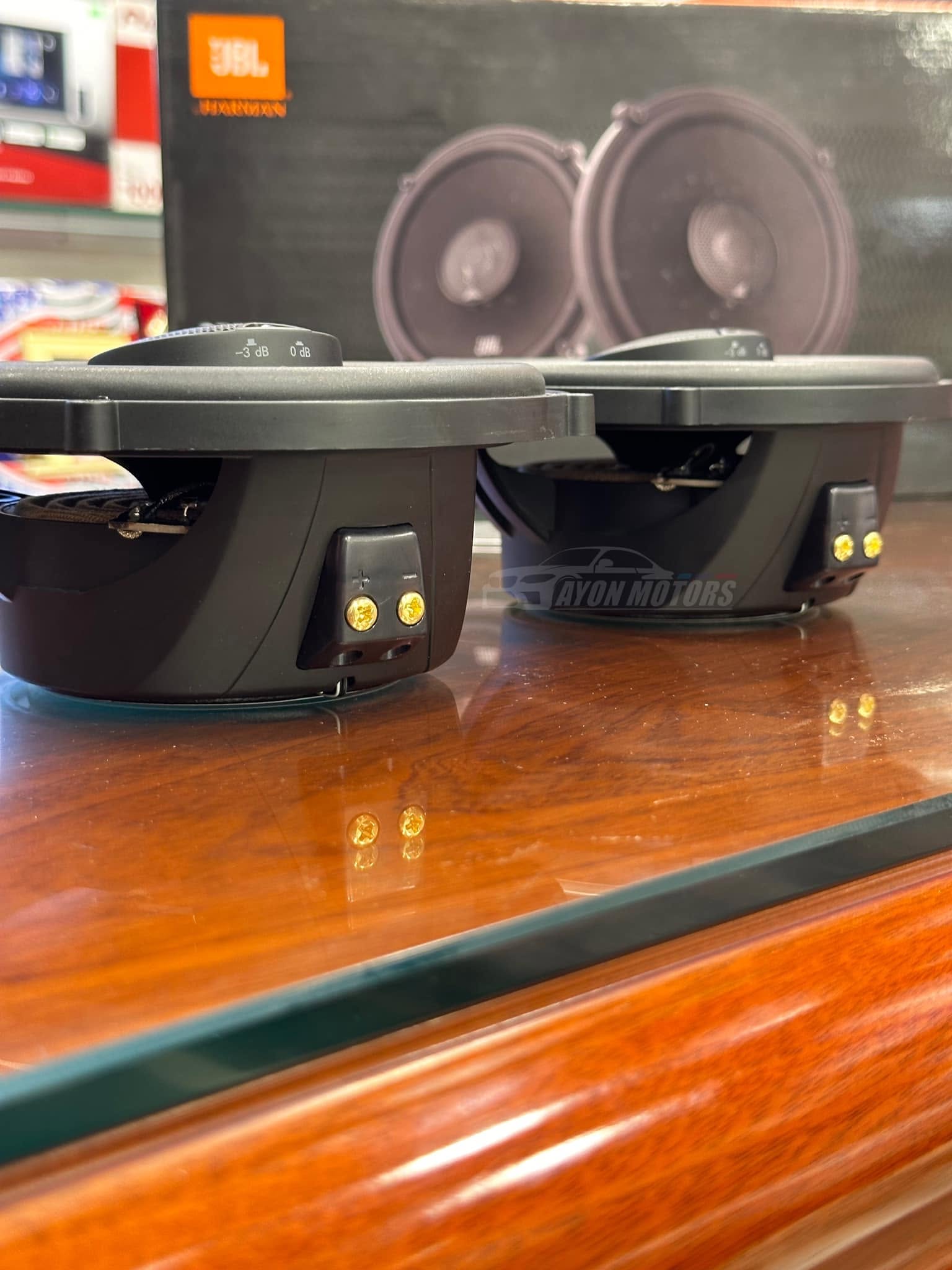

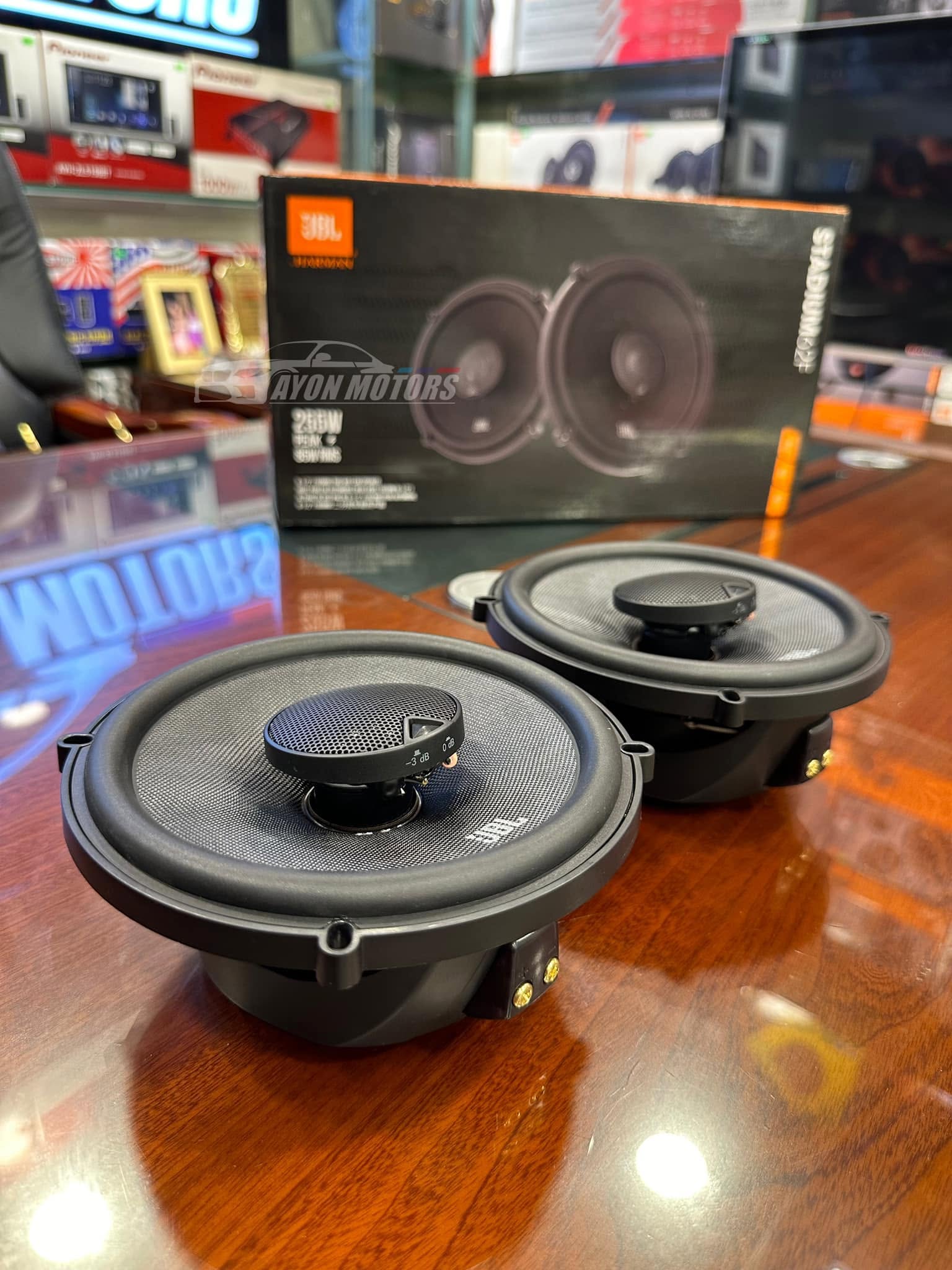

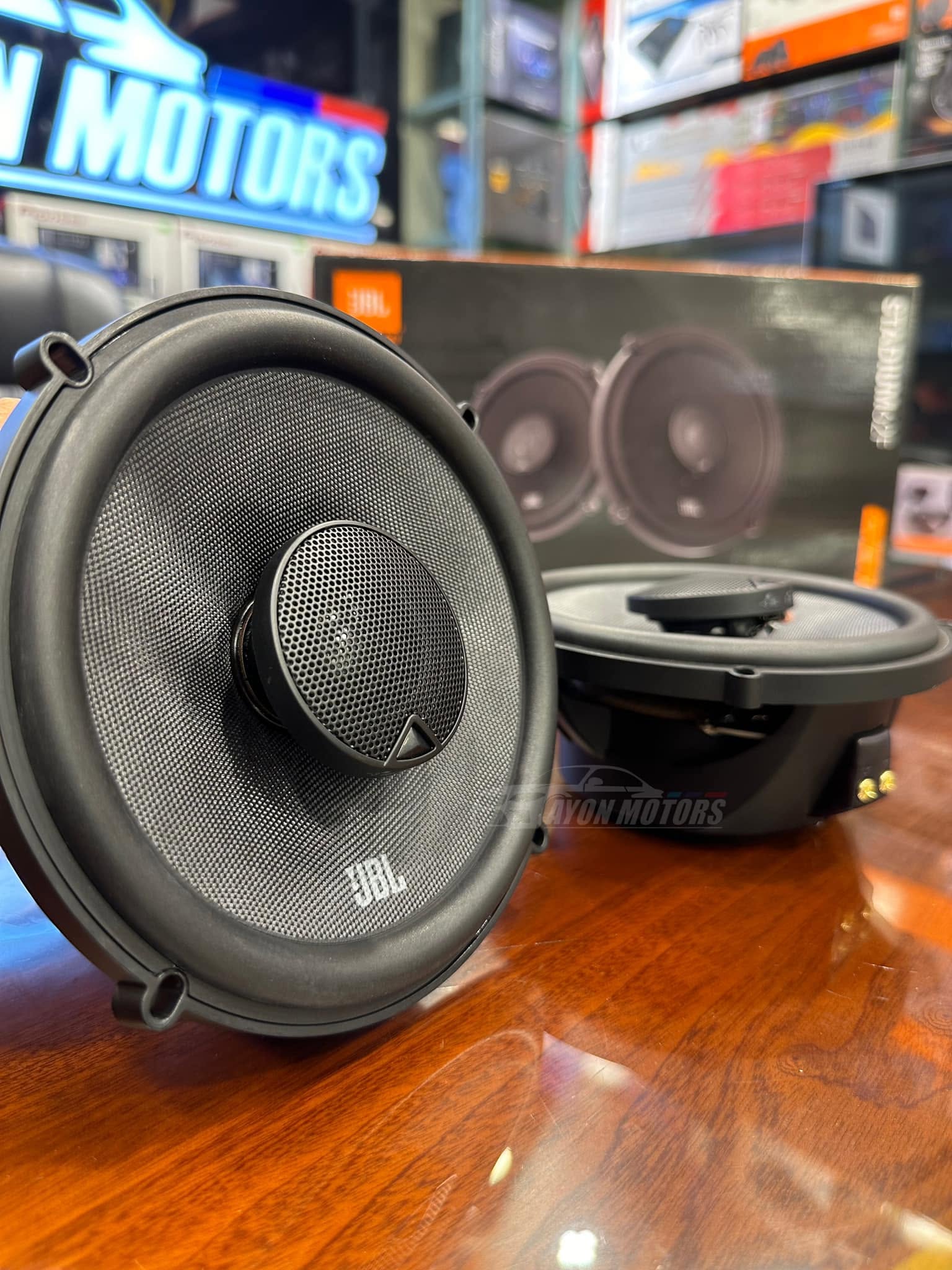

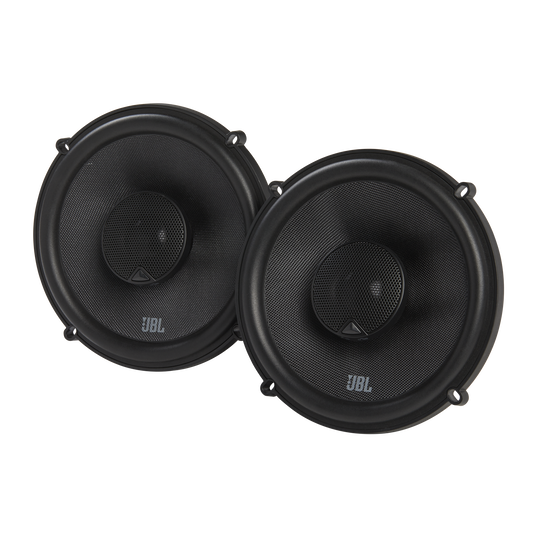

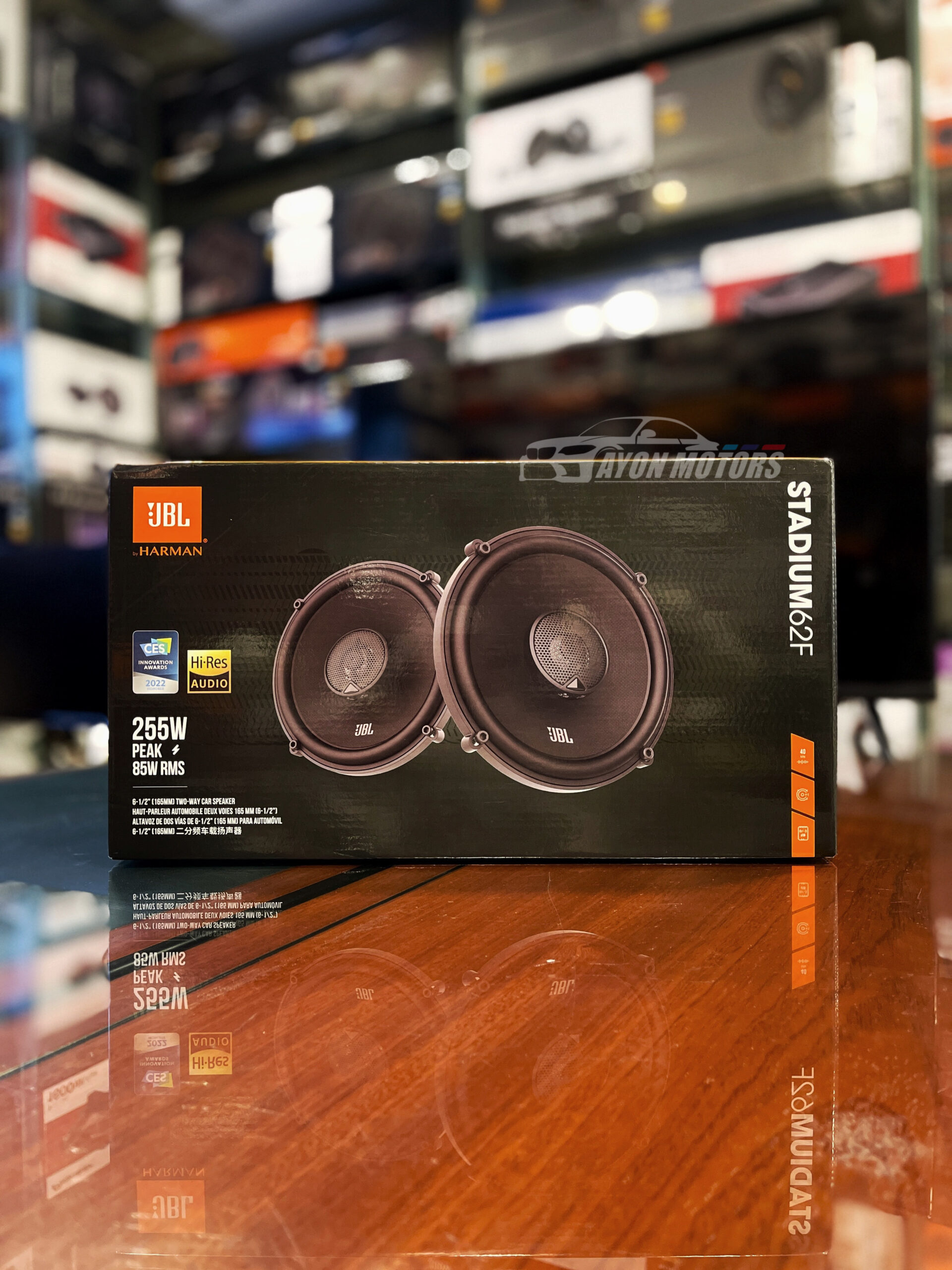

JBL Stadium 62F – High-Resolution 2-Way Coaxial Car Speaker (Hi-Res Certified)

Description

The JBL Stadium 62F brings HARMAN’s premium Stadium Series acoustic engineering into a direct-fit 2-way coaxial design. Recognized as a CES Innovation Award winner and certified for Hi-Res Audio, this speaker system integrates the high-frequency tweeter directly over the main woofer bridge—delivering high-end clarity without needing external tweeter pods or complex custom pods.

1. Hi-Res Audio Certification (40kHz High-Frequency Detail)

Standard factory speakers cap frequency output at 20kHz, losing higher harmonic detail. The JBL Stadium 62F’s edge-driven aluminum dome tweeter extends frequency reproduction all the way to 40kHz. This captures crisp vocals, metallic percussion, and high-octave notes with studio accuracy.

2. Patented Plus One™ Glass Fiber Woofer Cones

Featuring JBL’s patented Plus One™ cone technology, the woofer cone extends closer to the surround basket edge, providing up to 35% more cone surface area than traditional 6.5-inch speakers. The rigid glass fiber construction prevents flexing under high power, delivering tight, physical mid-bass response.

3. 3-Ohm Low-Impedance High-Efficiency Architecture

Engineered with a low-impedance 3-ohm voice coil, the Stadium 62F compensates for the resistance found in factory speaker wiring. It allows your head unit or aftermarket amplifier to safely draw more power, generating higher volume and wider dynamic range compared to standard 4-ohm speakers.

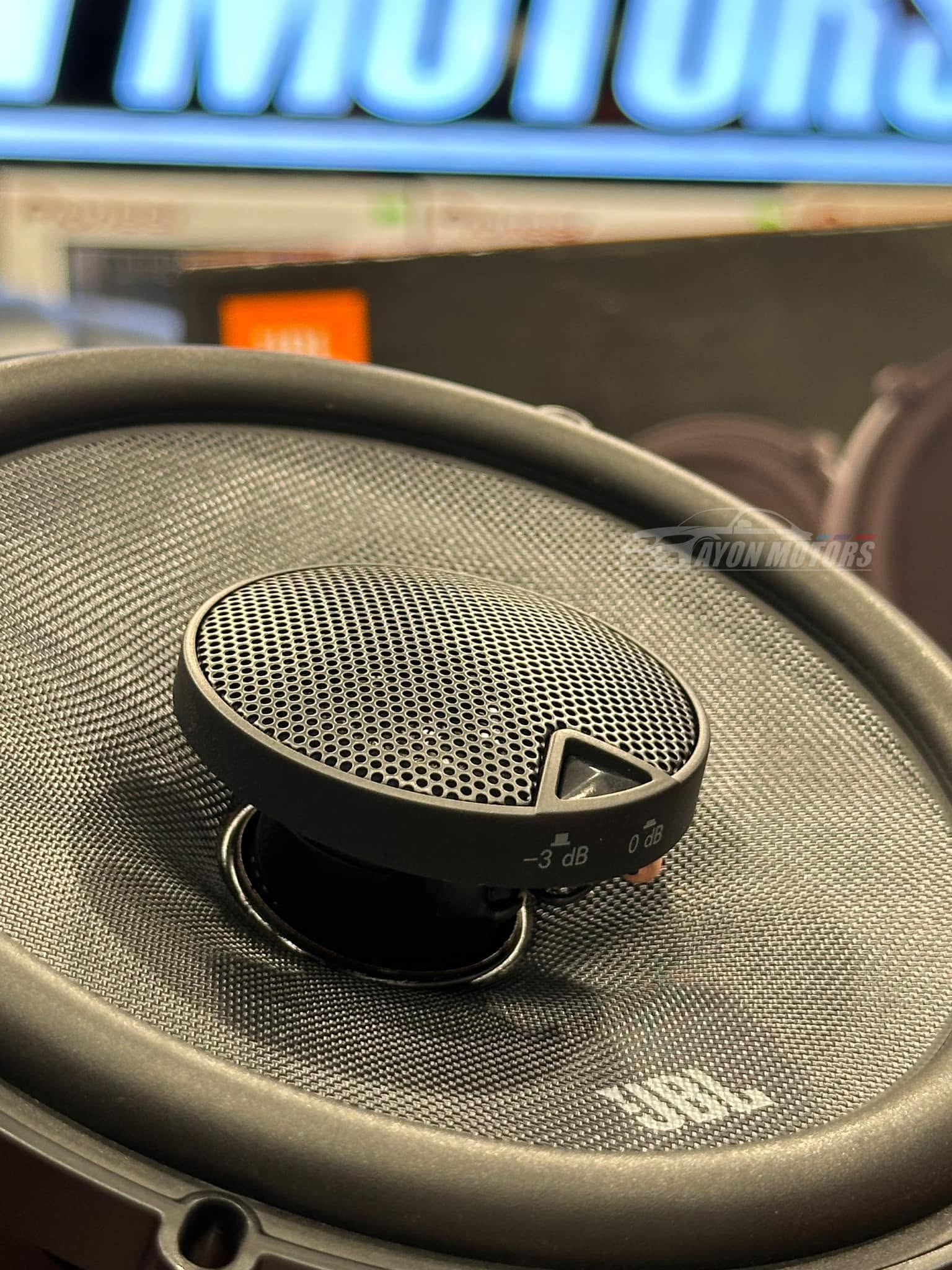

4. Integrated High-Pass Tweeter Filter

The center-mounted tweeter features an integrated high-pass crossover network, ensuring low bass frequencies stay on the main woofer cone while only clean treble reaches the tweeter dome.

PRODUCT SPECIFICATION INDEX

WHY COAXIAL SPEAKERS ARE RECOMMENDED FOR REAR DOORS

• Perfect Rear-Fill Soundstage Balance:

  Front-seat passengers benefit most from front component setups where separated tweeters pull the main vocal stage up to ear level. Installing coaxial speakers in the rear doors provides full-range “rear-fill” sound to round out the cabin atmosphere without pulling the main soundstage backward away from the driver.

• No Unnecessary Panel Modifications:

  Most vehicle rear doors lack factory tweeter cutouts or dedicated A-pillar pods. Coaxial speakers feature center-mounted tweeters directly over the woofer cone, delivering complete full-range audio without requiring custom holes or mounting pods in your rear door panels.

• Simplified Wiring & Clean Installation:

  Coaxial speakers integrate the tweeter and crossover network into the single driver chassis, eliminating the need to mount external crossover boxes inside rear door cavities where moisture and vibration can cause long-term wear.

• Ideal Complement to Front Component Systems:

  Pairing front component speakers (like the JBL Stadium 62CF) with rear coaxial speakers (like the JBL Stadium 62F) creates a balanced, matching sonic signature throughout the car using identical driver materials and voicings.
