Osun ODL162 Compact Plus Dual Tone Fanfare Power Horn Set (12V, 110dB, Weather Resistant)

Description

Ensure absolute road safety without compromising on space with the Osun ODL162 Compact Plus Dual Tone Fanfare Power Horn Set. When navigating crowded city lanes or high-speed motorways, a crisp and clear acoustic presence is your first line of defense. The ODL162 Compact Plus features a premium fanfare structure that perfectly harmonizes a low-frequency $400\text{Hz}$ tone and a high-frequency $500\text{Hz}$ tone, creating a sharp, wide-reaching acoustic sound wave that alerts surrounding traffic instantly.

What makes the Compact Plus series stand out is its space-saving engineering, designed specifically for modern vehicles with compact front grilles where traditional horn panels are too bulky to fit.

Why Choose the Osun ODL162 Compact Plus Horn?

Choosing the Osun ODL162 Compact Plus means getting premium OE-quality performance in a space-efficient package. While larger generic horns struggle to fit in tight engine bays or block vital radiator airflow, the ODL162 installs flush into any tight spot with ease.

It features an advanced Waterproof & Breathable Membrane Technology that completely isolates the internal contact points from rain splashes, mud, and dust while maintaining rich, distortion-free acoustics. Additionally, with its Low Power Consumption Architecture (72W per pair), it draws power safely without causing voltage spikes, making it perfectly optimized for standard cars as well as modern New Energy Vehicles (EVs / Hybrids). It represents the benchmark for compact vehicle safety upgrades.

Premium Facilities & Advanced Features:

🔊 Sharp and Powerful Fanfare Blast

Despite its small physical footprint, the Osun ODL162 packs a punch, driving a massive $110 \pm 5\text{dB}$ sound output. The dual-tone $400\text{Hz} / 500\text{Hz}$ wave easily penetrates heavy environmental noise and closed windows, providing maximum audible safety.

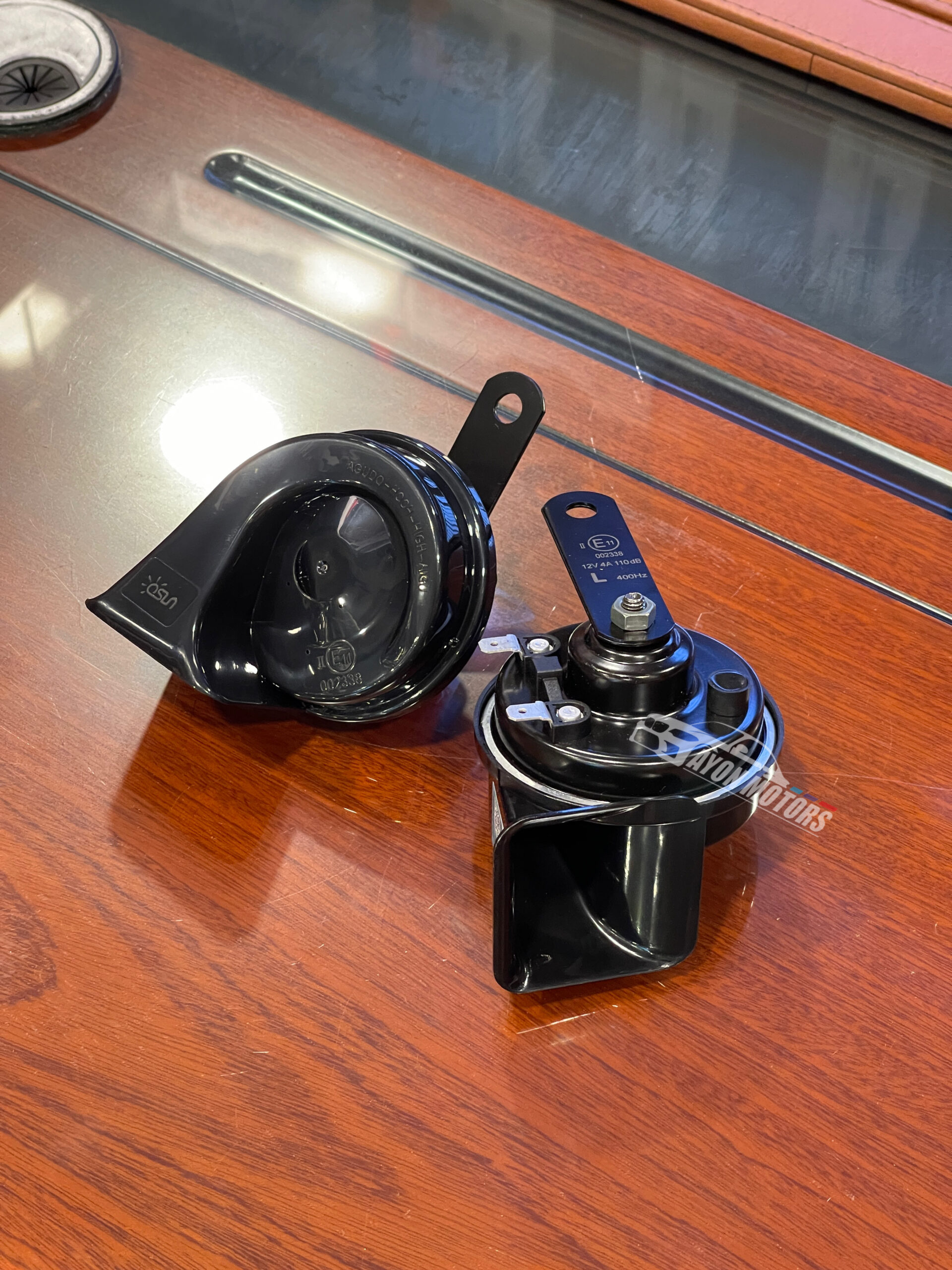

⛈️ Waterproof & Breathable Filter Membrane

Engineered to withstand harsh seasonal downpours and aggressive pressure washes, the integrated breathable filter membrane blocks water molecules and dust from reaching the internal high-durability diaphragm, preventing premature failure or muted sound.

🔋 Engineered for EVs & New Energy Vehicles

With a highly stabilized contact protection process, this horn ensures minimal load on your vehicle’s sensitive electrical components. This makes it fully safe to use with the complex wiring systems found in modern hybrid and fully electric smart vehicles.

⚙️ Premium Material & High-Durability Diaphragm

Every single component is 100% factory tested. Constructed from high-grade, impact-resistant polymer materials, the ODL162 is built to endure extreme engine bay heat and vibration, ensuring it maintains its structural integrity and structural tone profile over years of continuous honking.

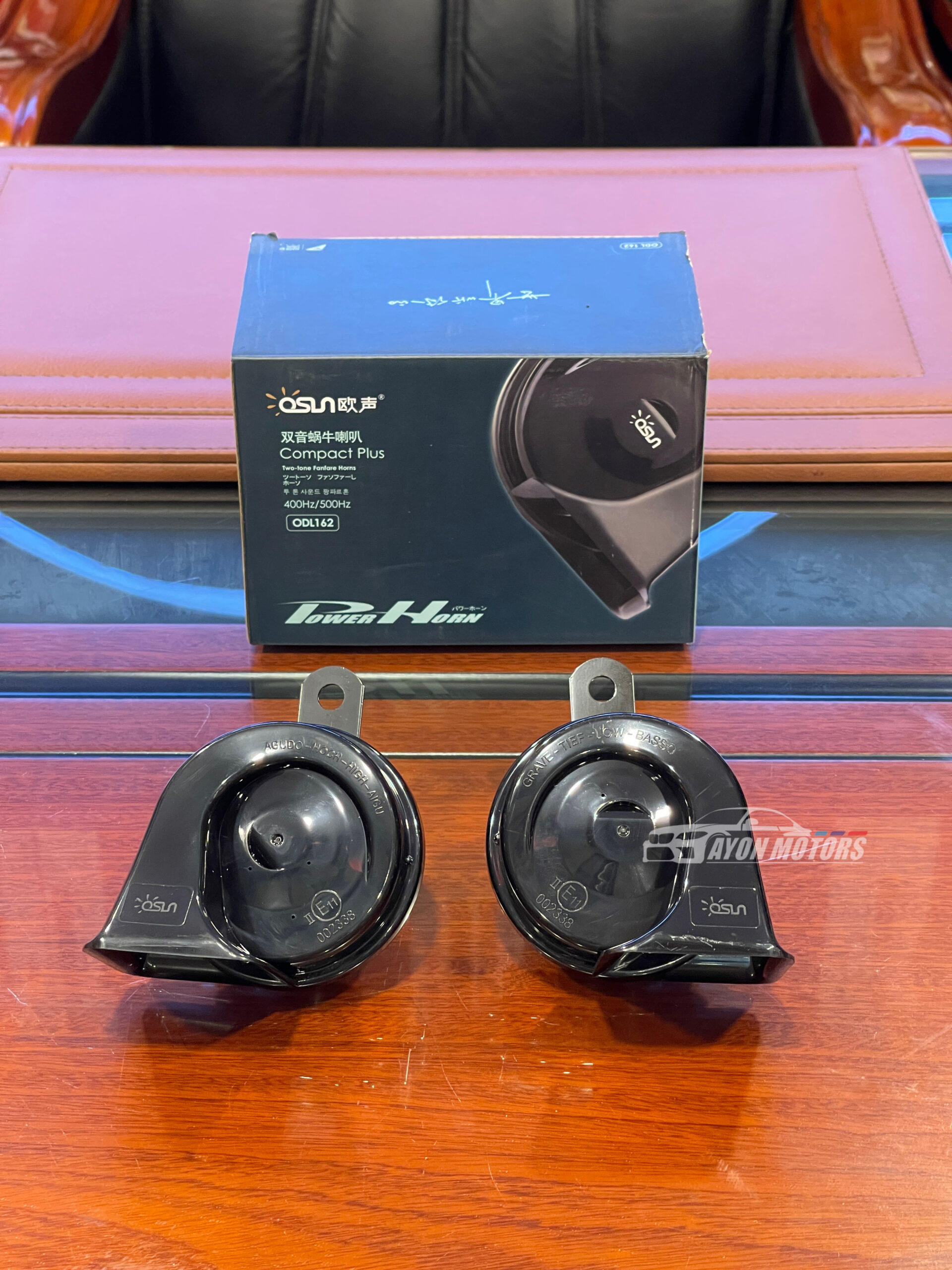

Key Features & Technical Specifications:

• Brand: Osun® Power Horn (Premium OE Quality Series)

• Model: ODL162 Compact Plus

• Sound Profile: Zwei-Klang Fanfare Dual-Tone ($400\text{Hz}$ Low Tone + $500\text{Hz}$ High Tone)

• Sound Level Output: $110 \pm 5\text{dB}$ for excellent on-road safety and visibility.

• Electrical System: Standard 12V Operating Voltage, 72W Power Rating (per pair).

• Technology Shield: Waterproof & Breathable Membrane with specialized contact protection.

• Vehicle Application: Universal fit for all 12V cars, SUVs, Microbuses, and New Energy Vehicles (EVs/Hybrids).

🛠️ Installation Guide

Follow these simple, step-by-step instructions to properly and safely install your new premium twin-tone horn set:

1. Safety First

• Park your vehicle on a flat, level surface, turn off the engine, and remove the key from the ignition.

• To prevent any accidental short-circuits or electrical damage, disconnect the negative (Negative/-) terminal of your car battery before starting.

2. Locate the Factory Horn

• Pop open the car hood (bonnet) and look right behind the front grille or radiator area to find the original factory horn.

• If the grille blocks your hand access, carefully remove the plastic clips or screws securing the top plastic cover or front bumper to gain clear access.

3. Disconnect and Remove

• Carefully unplug the wire harness or slide-on connectors attached to the back of the old factory horn.

• Use a wrench or socket (usually $10\text{mm}$ or $12\text{mm}$) to loosen the mounting bolt, then safely remove the old horn from the bracket.

4. Mount the New Twin-Tone Horns

• Securely bolt the two new horns (High Tone & Low Tone) onto the vehicle’s metal chassis or existing factory horn brackets using the provided mounting hardware.

• Pro-Tip: Always position the horn’s opening/mouth facing downward (Upright Mount). This prevents rainwater, road mud, or car wash water from pooling inside the horn diaphragm, ensuring a long, trouble-free life.

5. Wiring Connections

• Direct Connection: If your vehicle uses a standard plug-and-play layout, simply connect the positive and negative factory wires directly to the pins on the new horns.

• Relay Installation (Highly Recommended): Since premium sports and twin-tone horns draw higher power ($72\text{W}$ or more), installing a standard 4-Pin Horn Relay with an inline fuse is highly recommended. A relay protects your original factory wiring from overheating and ensures the horns receive maximum voltage to deliver their full loudness.

6. Final Test

• Double-check all wire joints to ensure there are no exposed wires or loose plugs.

• Reconnect the negative terminal to your car battery.

• Turn on the vehicle’s ignition, press the horn on your steering wheel, and enjoy your crisp, powerful new premium dual-tone sound!
