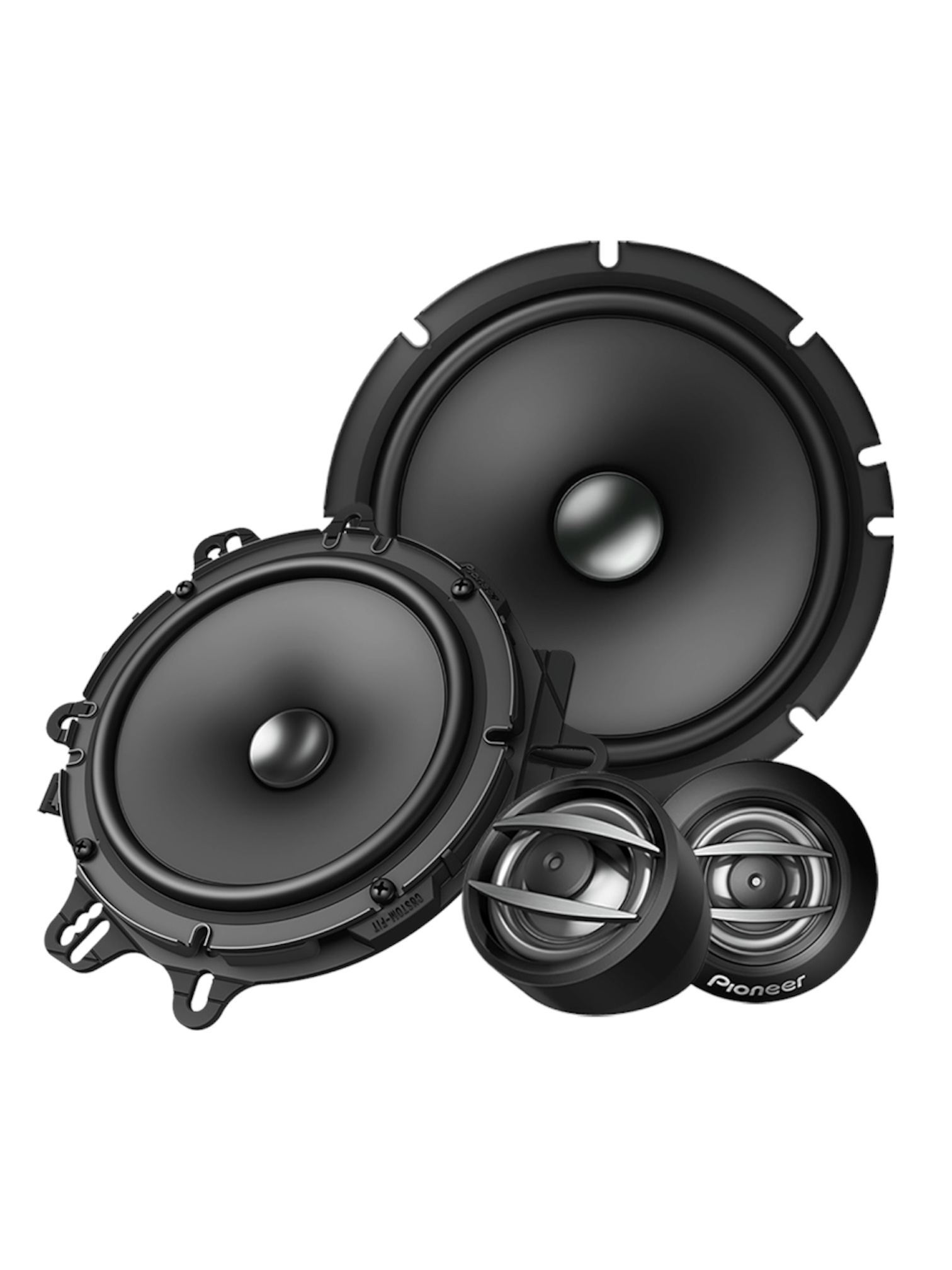

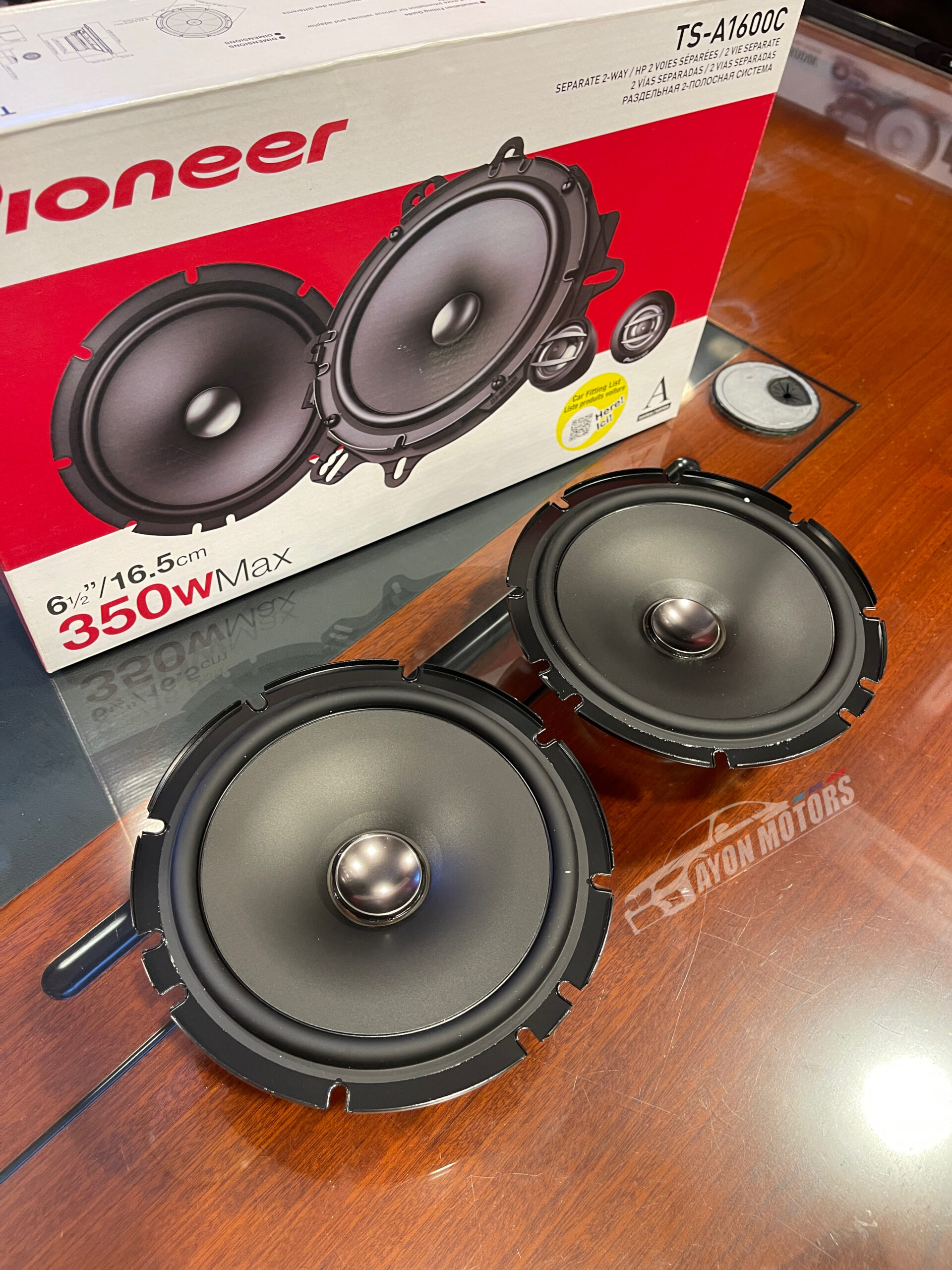

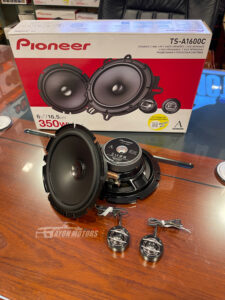

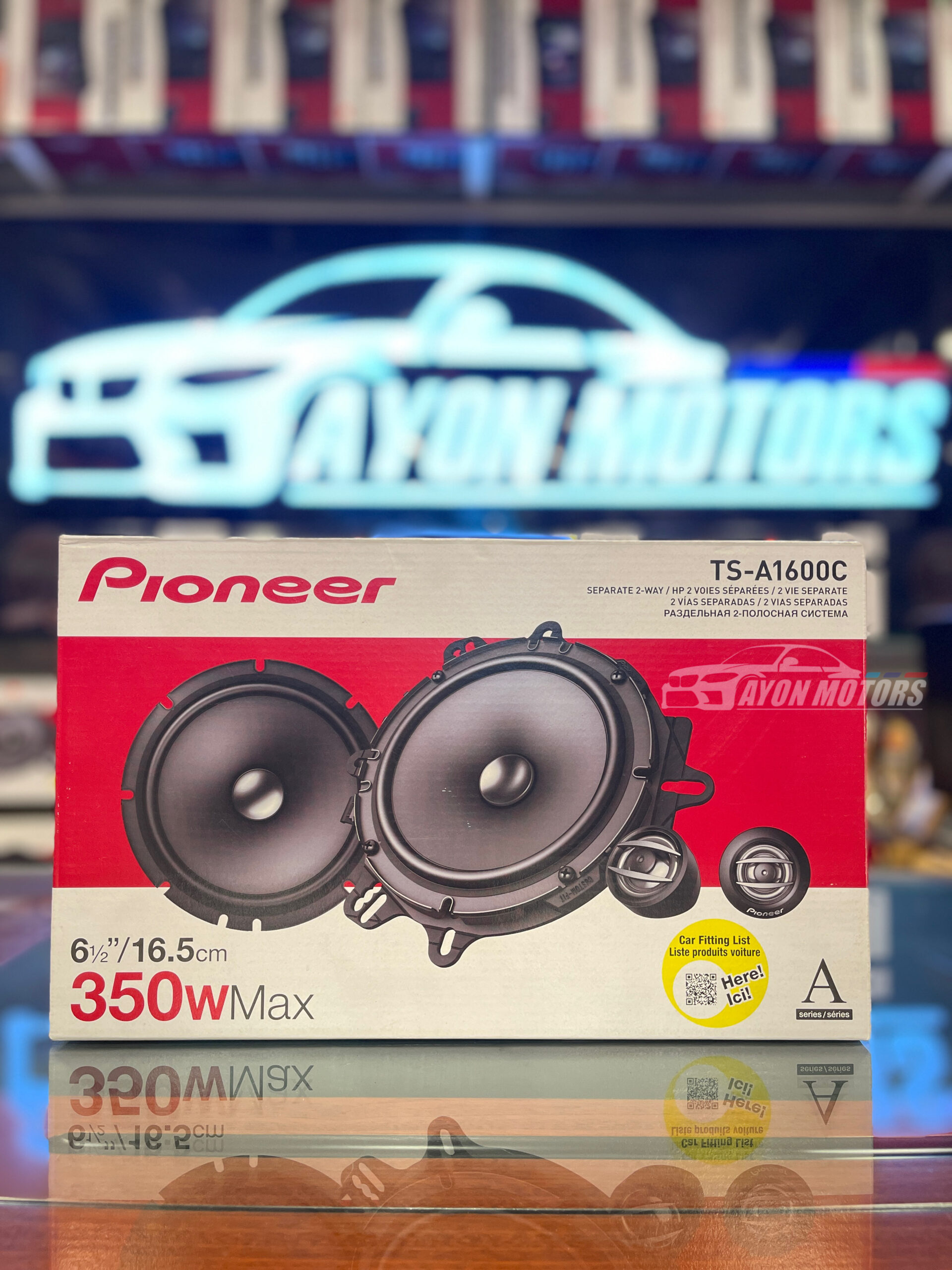

Pioneer TS-A1600C A-Series 6.5″ (16.5 cm) 2-Way Component Speaker

The Pioneer TS-A1600C A-Series component system delivers high-impact sound with smart installation convenience. Utilizing Pioneer’s Open & Smooth™ concept, it balances low mid-bass frequencies from the door-mounted woofers with extended high frequencies from the dash-mounted tweeters, creating a seamless front soundstage inside your vehicle cabin.

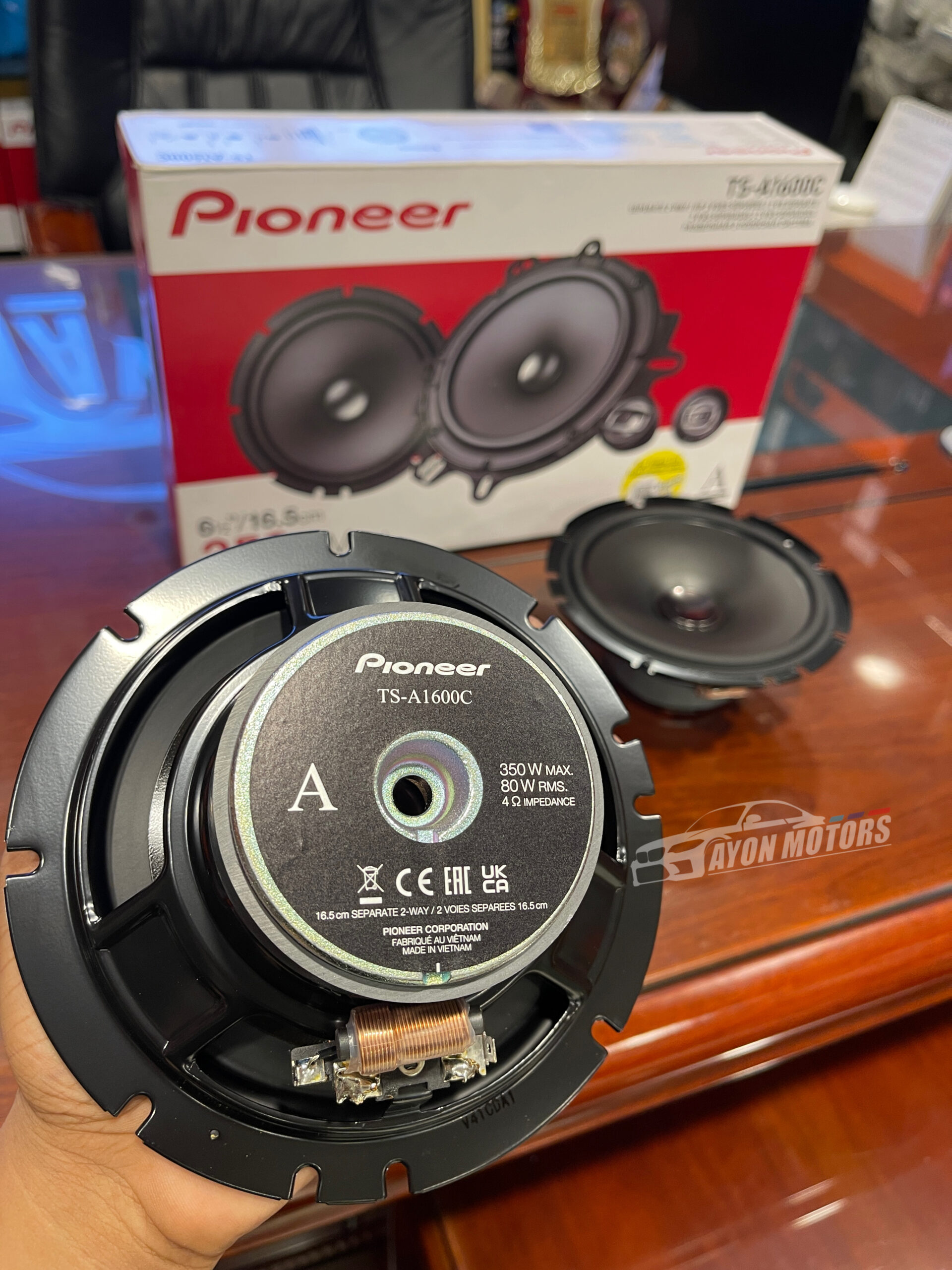

• Separate Driver Soundstaging (80W RMS / 350W Max): Placing the tweeters up higher on the A-pillars or dashboard lifts vocals and instrumental detail to ear level instead of muffling them near your feet.

• Carbon & Mica Reinforced IMPP™ Cone: Provides structural rigidity for tight mid-bass hits and smooth vocal midrange reproduction.

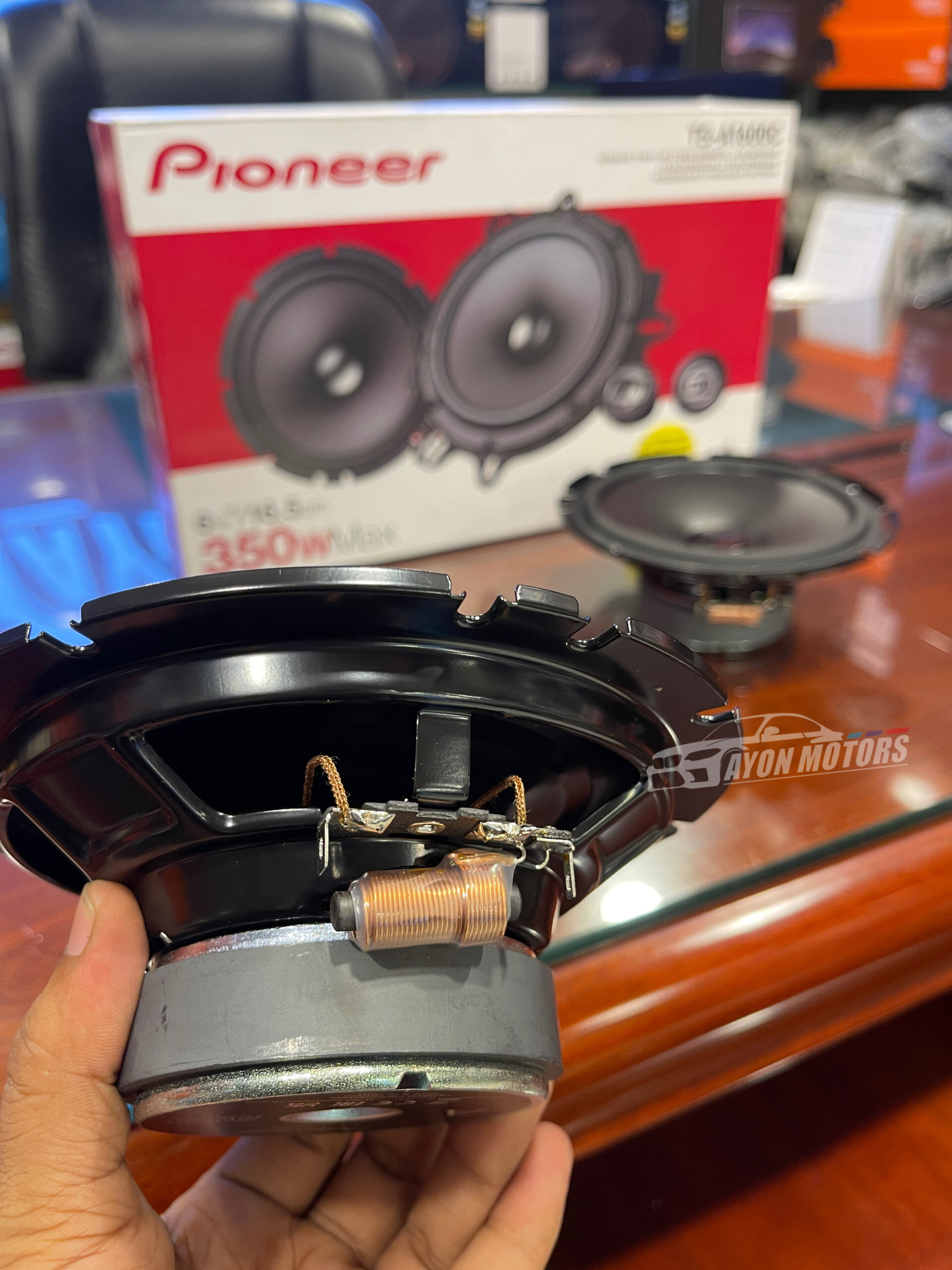

• Space-Saving Integrated Crossovers: In-line filter networks attached directly to the leads eliminate the need to tuck oversized external crossover boxes inside door panels.

• Multi-Fit Custom Adapter Plates: Includes vehicle-specific multi-fit brackets for simple drop-in replacement across major car models.

TECHNICAL SPECIFICATION INDEX

🛠️ STEP-BY-STEP INSTALLATION GUIDE (COMPONENT SETUP)

1. Door Panel Access: Unscrew retaining bolts and unclip the interior door panel using plastic pry tools. Unplug stock speakers and controls.

2. Mounting the Custom-Fit Bracket: Attach the provided Pioneer multi-fit adapter plate to the factory speaker location on the metal door sheet using stock bolt patterns.

3. Woofer Connection & Mounting: Connect the vehicle’s positive (+) and negative (-) speaker leads directly to the TS-A1600C woofer terminals. Secure the woofer into the adapter plate.

4. Tweeter Placement & Wiring:

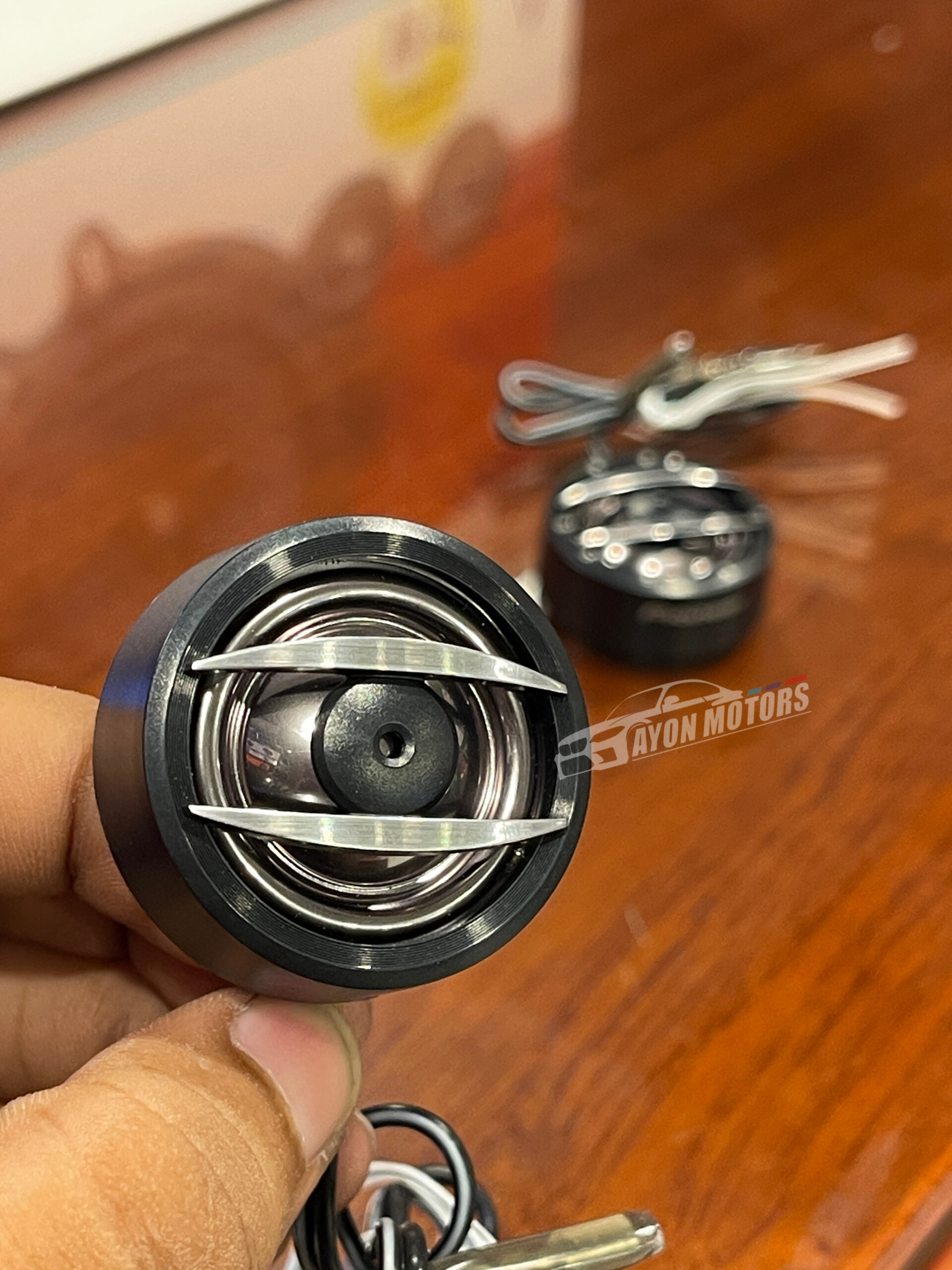

   • Mount the separate tweeters on the dashboard corner, OEM tweeter sail panels, or A-pillars using the included flush/angled mount pods.

   • Route the tweeter wires through the in-line crossover harness connected to the main input line.

5. System Verification & Reassembly: Test audio balance and phase before reattaching the interior door panels securely.

🌟 WHY CHOOSE AYON MOTORS?

• 100% Genuine Pioneer Products: Guaranteed authentic components sourced directly from official distribution networks.

• Professional OEM Fitment: Clean installation using proper adapter rings, heat-shrink insulation, and zero factory wire cutting.

• Acoustic Sound Tuning: Cabin soundstage balancing and frequency optimization for your specific vehicle setup.

• Complete After-Sales Support: Expert guidance for amplifier matching, sound deadening upgrades, and ongoing customer care.
